PTFE & Silicone Rubber Coated

Industrial
Tapes



Taconic offers a full line of PTFE and silicone rubber coated tapes engineered for demanding applications requiring nonstick release, low friction, dimensional stability, abrasion resistance, and dependable performance under heat and pressure.

Available with a variety of backing materials and silicone, acrylic, or synthetic rubber adhesive systems, designed to meet application-specific requirements across packaging, aerospace, food processing, apparel, thermal spray masking, electrical insulation, composite molding, lamination, paper processing, PVC welding, and plastic bag manufacturing.

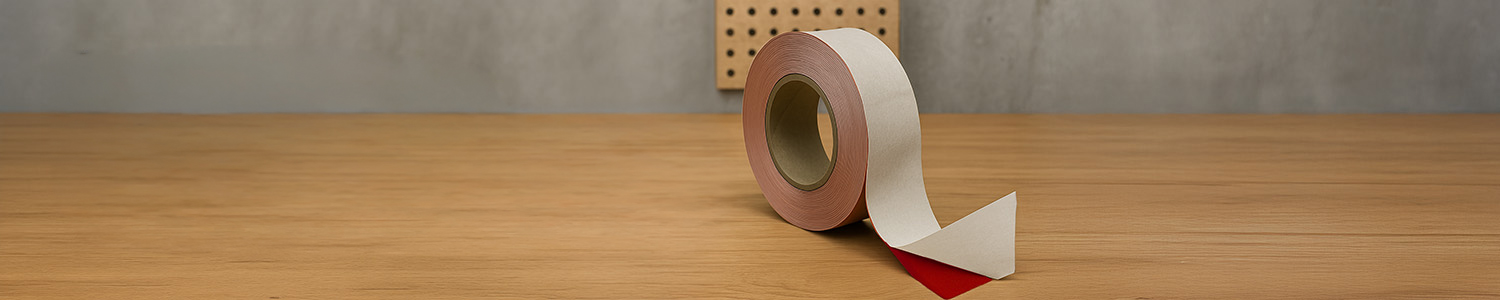

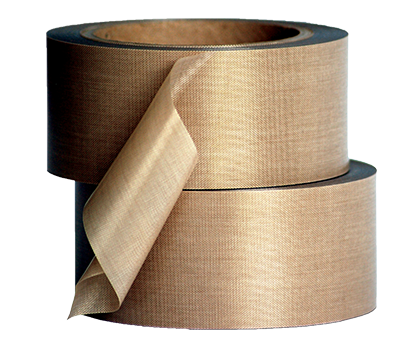

Taconic PTFE and silicone rubber coated tapes


Performance Advantages

Built for the applications
others can't handle.

Optimal Release

PTFE and silicone rubber coated tape surfaces provide dependable nonstick release for sealing, masking, lining, covering, and processing applications.

Low Friction

Low-friction surfaces help reduce sticking, drag, residue buildup, and material handling issues in production environments.

Dimensional Stability

Engineered tape constructions support consistent performance where heat, pressure, and production repeatability are critical.

Abrasion Resistance

Durable backing and coating options help protect surfaces from wear, abrasion, and demanding industrial process conditions.



Common Applications

Where Taconic tapes
are already at work.

Taconic coated tapes are used across industries where release, protection, masking, insulation, and process consistency are essential.

Packaging
Aerospace
Food Processing
Apparel
Thermal Spray
Electrical Insulation
Composite Molding
Lamination
Paper Processing
PVC Welding
Plastic Bag Manufacturing


Tape Backings

The right backing
for every application.

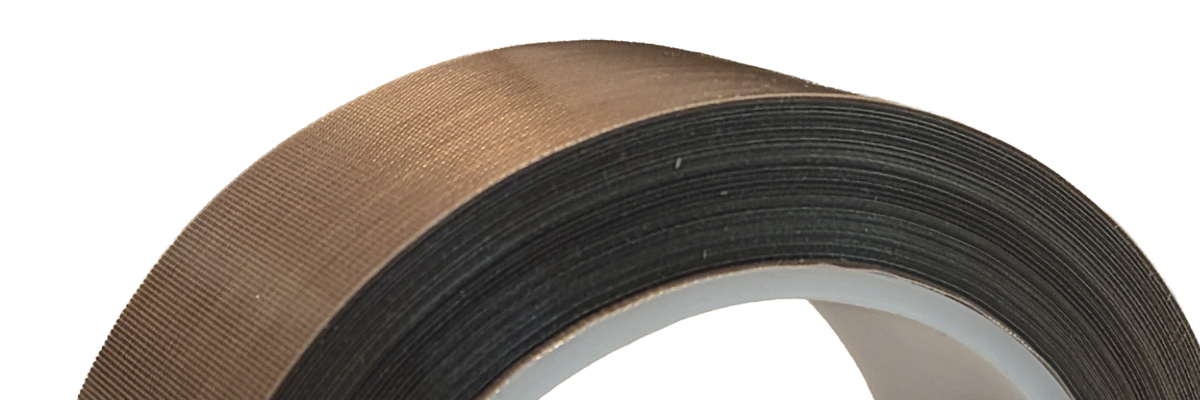

Premium Grade PTFE Fiberglass tape backing

Premium Grade PTFE Fiberglass

For the most demanding nonstick applications that require the highest PTFE-to-substrate ratio in their class.

High Release Premium PTFE Extreme Applications

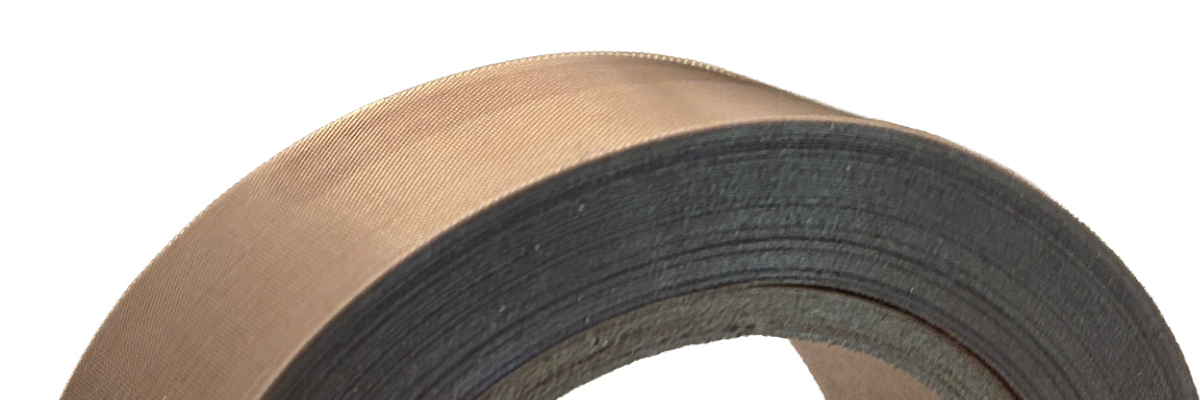

Standard Grade PTFE Fiberglass tape backing

Standard Grade PTFE Fiberglass

For most adhesive applications where a smooth surface with excellent nonstick properties is required.

General Purpose Smooth Surface Reliable Release

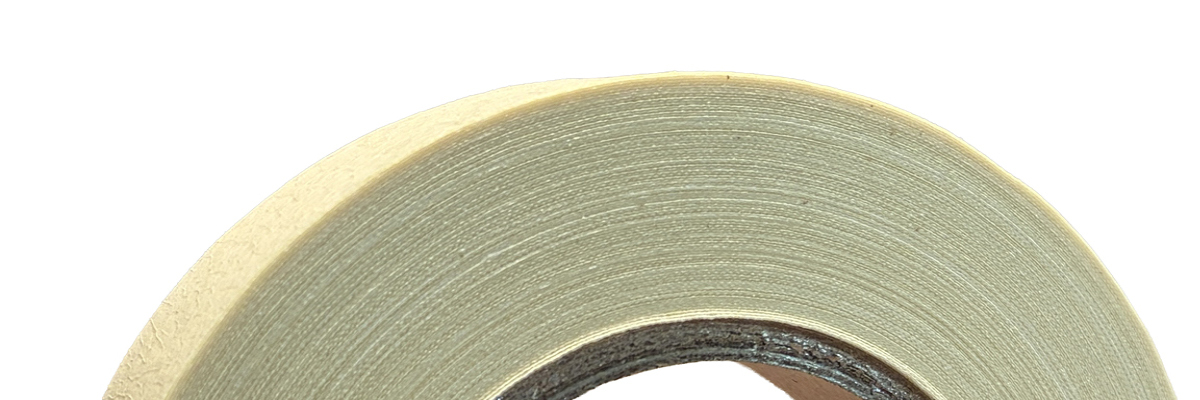

Glass Cloth tape backing

Glass Cloth

Superior cut-through and excellent flexibility. Available with adhesive coated on one or two sides.

Cut-Through Resistance Flexible Dual Adhesive Options

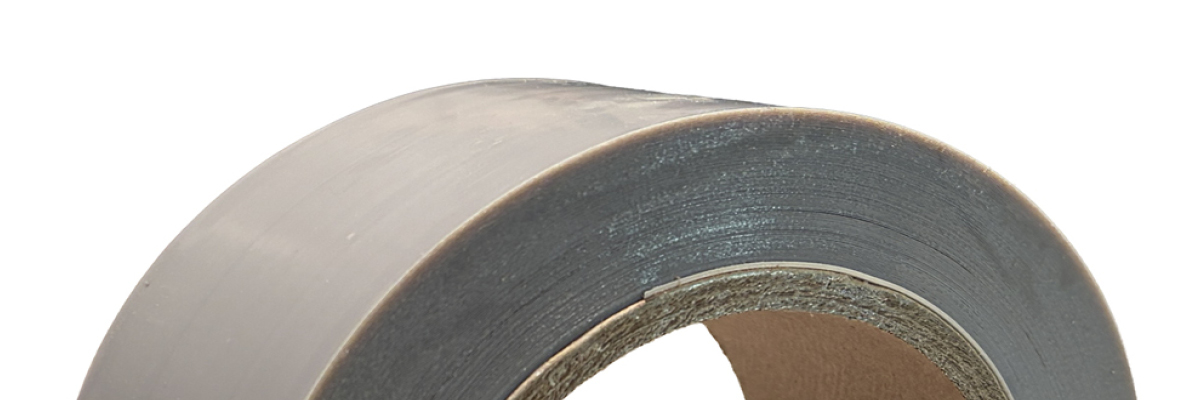

Skived PTFE Film tape backing

Skived PTFE Film

Effective in high dielectric and high-temperature masking applications. High elongation makes these tapes excel where conformability is important.

High Dielectric Conformable Masking Applications

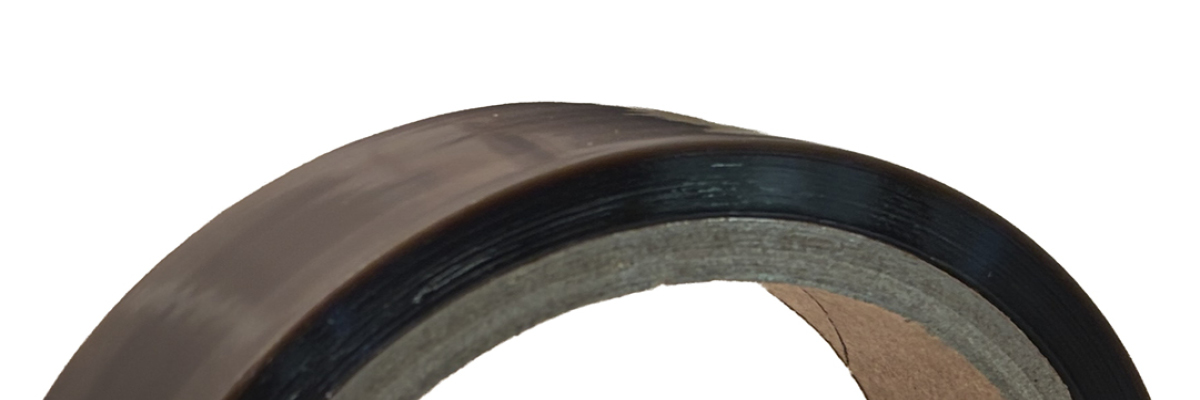

High Modulus PTFE tape backing

High Modulus PTFE

Oriented PTFE film with high wear properties and low elongation.

Wear Resistant Low Elongation Oriented PTFE

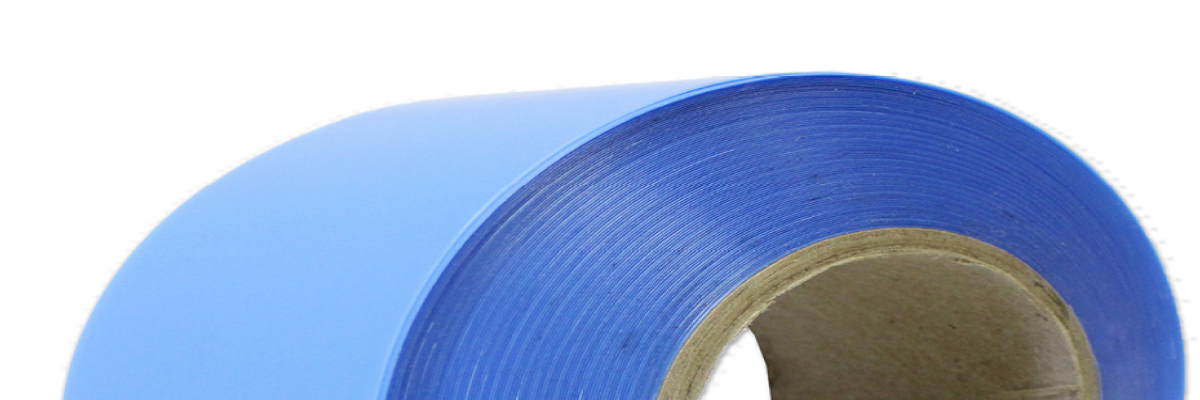

UHMW Film tape backing

UHMW Film

Ultra High Molecular Weight Polyolefin outwears PTFE 5-to-1 in mechanical applications below 190°F / 90°C.

Low Friction Wear Resistance Mechanical Applications

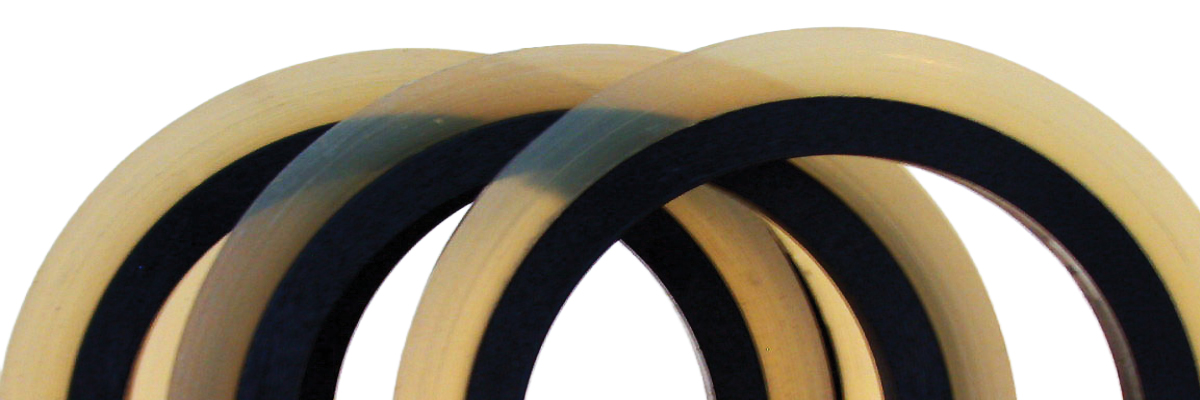

FEP Film tape backing

FEP Film

Fluorinated Ethylene Propylene offers optical clarity for identification along with excellent conformability, UV resistance, and dielectric properties.

Optical Clarity UV Resistant Dielectric Properties


Specialty Tapes

Engineered for
specific challenges.

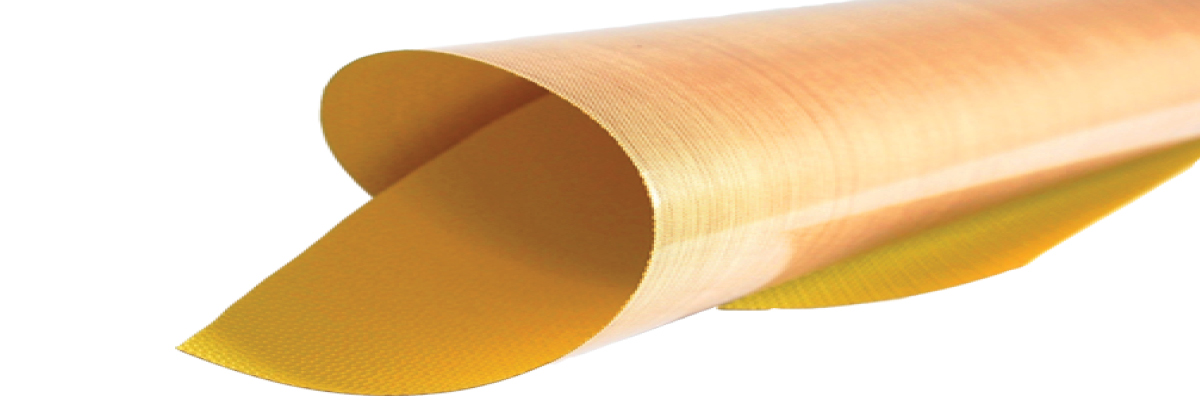

Taconic Roll Covering tape

Roll Covering

Provides nonstick protection of rolls and drying cylinders from sticky residue during material processing.

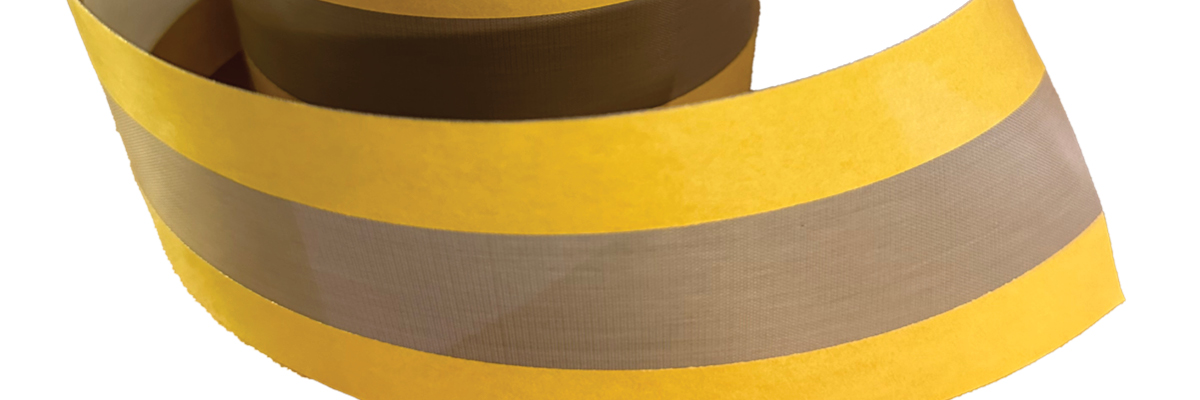

Taconic Zone Tapes

Zone Tapes

Ideal as a barrier between hot surfaces and sealing materials for use with L-sealer bars and vacuum sealers.

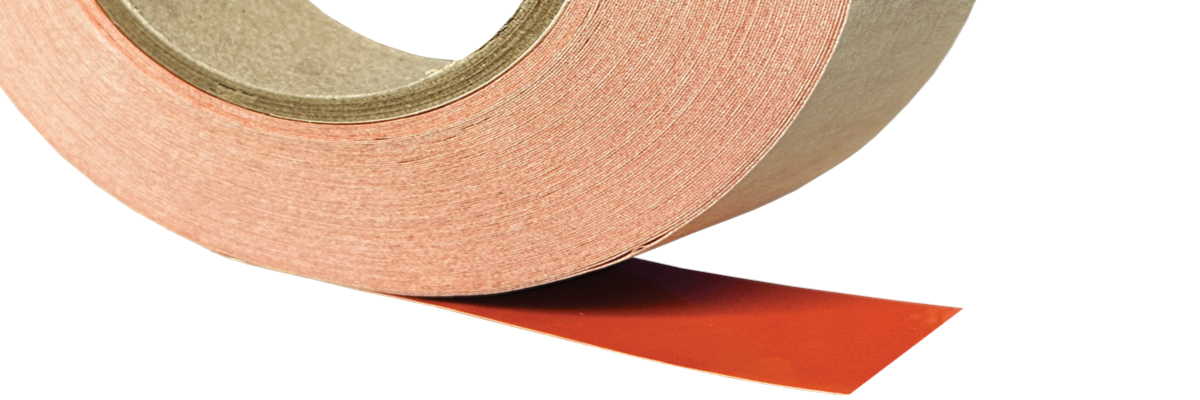

Taconic Thermal Spray Masking Tapes

Thermal Spray Masking Tapes

Provides abrasion and temperature resistance for masking in metal and ceramic plasma spraying, flame spraying, HVOF spraying, and grit blasting.



Tape Nomenclature

Understanding
part numbers.

Part Number Format: 6ABC-XX

Taconic tape part numbers help identify adhesive tape construction, substrate, adhesive type, and substrate thickness.

  • 6 = Adhesive Tape
  • AB = Substrate / Reinforcement
  • C = 3 Acrylic PSA / 5 Silicone PSA
  • XX = Substrate Thickness, mils

Example: 6525-08

  • 6 = Adhesive Tape
  • 52 = LSR Coated Glass
  • 5 = Silicone PSA
  • 08 = 8 mil Substrate Thickness

Substrate / Reinforcement Reference

Code Substrate / Reinforcement
11 Skive Film
31 UHMW Film
44 Oriented PTFE Film
14 FEP Film
60 Glass Substrate — 1 Side PSA
61 Glass Substrate — 2 Side PSA
07 Mechanical Grade PTFE Coated Glass
08 Standard Grade PTFE Coated Glass
09 Premium Grade PTFE Coated Glass
03 Black PTFE Glass
52 LSR Coated Glass
62 Foil / Glass
72 Foil Tape / Glass Tape — Multiple Ply
82 Foil Tape / LSR Tape — Multiple Ply


Tape Values

Product specifications
by grade.

We offer tape in several grades to cost-effectively meet your application requirements.

Part Number Total Thickness
(inches)		 Adhesive Thickness
(inches)		 Adhesive Type Adhesive Strength
(oz/inch)		 Operating Temp
Min/Max °F		 Max Width
(inches)
Premium Grade
6095-03 0.005 0.002 Silicone 40 -100/500 38
6095-05 0.007 0.002 Silicone 50 -100/500 42
6095-06 0.008 0.002 Silicone 50 -100/500 42
6095-06-TW-GRN 0.008 0.002 Silicone 55 -100/500 46
6095-06-TW-GHT 0.008 0.002 Silicone 55 -100/500 42
6095-10 0.012 0.002 Silicone 60 -100/500 38
6A1100 0.007 0.002 Silicone 45 -100/500 38
6093-03 0.005 0.002 Acrylic 45 -40/350 42
6093-05 0.007 0.002 Acrylic 65 -40/350 42
6093-06 0.008 0.002 Acrylic 65 -40/350 42
6093-10 0.012 0.002 Acrylic 110 -40/350 42
Standard Grade Tape
6085-03 0.005 0.002 Silicone 40 -100/500 38
6085-05 0.007 0.002 Silicone 45 -100/500 42
6085-06 0.008 0.002 Silicone 50 -100/500 42
6085-10 0.012 0.003 Silicone 55 -100/500 38
6085-14 0.0017 0.003 Silicone 55 -100/500 38
6083-03 0.005 0.002 Acrylic 50 -40/350 42
6083-05 0.007 0.002 Acrylic 72 -40/350 42
6083-06 0.008 0.002 Acrylic 90 -40/350 42
6083-10 0.011 0.002 Acrylic 95 -40/350 42
6083-14 0.016 0.002 Acrylic 90 -40/350 42
Roll Covering
6005-06 0.008 0.002 Silicone 50 -100/500 38
Glass Cloth Tape
6603-07 0.007 0.002 Acrylic 35 -40/350 42
6605-07D 0.007 0.002 Silicone 35 -100/500 42
6605-07HT 0.007 0.002 Silicone 30 -100/500 42
6615-07 0.007 0.003 Silicone 45 -100/500 38
6605-10 0.009 0.004 Silicone 30 -100/500 42
6615-10-D 0.011 0.004 Silicone 40/25 -100/500 38
Thermal Spray Masking
6605-07HP 0.007 0.002 Silicone 40 -100/500 42
6615-07 0.007 0.003 Silicone 45 -100/500 38
6615-12 0.012 0.007 Silicone 45 -100/500 38
6625-07 0.007 0.003 Silicone 70 -100/500 34
6625-09 0.009 0.004 Silicone 50 -100/500 34
6625-11 0.011 0.004 Silicone 50 -100/500 34
6525-08 0.011 0.003 Silicone 50 -100/500 38
6525-08 RD 0.011 0.003 Silicone 40 -100/625 41
6525-16 0.021 0.003 Silicone 48 -100/500 38
6725-15 0.015 0.006 Silicone 50 -100/500 38
Skived PTFE Film Tape
6115-03 0.005 0.002 Silicone 35 -100/500 38
6115-05 0.007 0.002 Silicone 40 -100/500 38
6115-10 0.012 0.002 Silicone 45 -100/500 38
6113-03 0.005 0.002 Acrylic 45 -40/350 38
6113-05 0.007 0.002 Acrylic 70 -40/350 38
6113-10 0.012 0.002 Acrylic 70 -40/350 38
High Modulus PTFE Film Tape
6445-02 0.004 0.002 Silicone 25 -100/500 21
6445-03 0.005 0.002 Silicone 30 -100/500 21
6445-05 0.008 0.003 Silicone 35 -100/500 18
UHMW Film Tape
6311-05 0.007 0.002 Acrylic 50 -40/190 18
6311-10 0.012 0.002 Acrylic 70 -40/190 18
FEP Film Tape
6145-02D 0.004 0.002 Silicone 30 -100/500 24
Zone Tape
6500-03 0.010 0.003 Synthetic Rubber 75 -40/300 4
6500-05 0.012 0.003 Synthetic Rubber 80 -40/300 4
6500-06 0.013 0.003 Synthetic Rubber 80 -40/300 4

The data herein are averages based on the authoritative testing of several lot numbers. This information is intended for comparison purposes only.



Ready to Get Started?

Need help selecting
the right tape?

Taconic can help you identify the right PTFE coated tape, silicone rubber coated tape, or custom coated solution for your application.
