Monofilament & Spiral Conveyor Belts

TacMesh
PEEK, PES, & PPS
Conveyor Belts

 Uploaded Image: /vs-uploads/icons/1779417701_Taconic-Arcari-Italy.png



Taconic TacMesh belts are high-performance mesh conveyor belts engineered for drying, steam cooking, washing, baking, pasteurization, forming, conveying, and other demanding industrial processes.

Manufactured from advanced monofilament materials including PES, PPS, and PEEK, TacMesh belts are available with a wide range of weave styles, edging options, and joint configurations to support your exact application requirements.

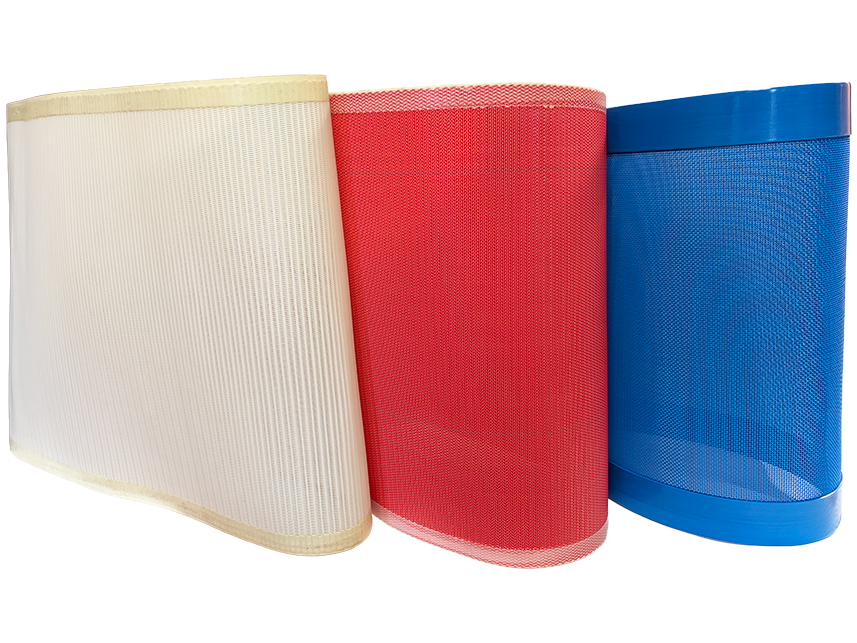

Taconic TacMesh monofilament and spiral conveyor belts
Applications: Drying Steam Cooking Washing Lines Pasteurization Textiles Forming Belts


Application Overview

Mesh belts built for
demanding industrial environments.

TacMesh belts are designed for processes where airflow, drainage, release, strength, and durability are critical. They are used across food processing, textile production, nonwoven materials, recycling, insulation manufacturing, wood-based panel production, and other continuous processing applications.

Each belt can be customized with the right joint type, edge reinforcement, tracking guide, width, length, and material construction to help meet production, sanitation, temperature, and durability requirements.

PES belt edges can be reinforced with TPU or TPE to encapsulate yarns, helping prevent fraying and product contamination. Tracking guides can also be installed on the inside face of the belt edges, while stainless steel fasteners support convenient fitting.

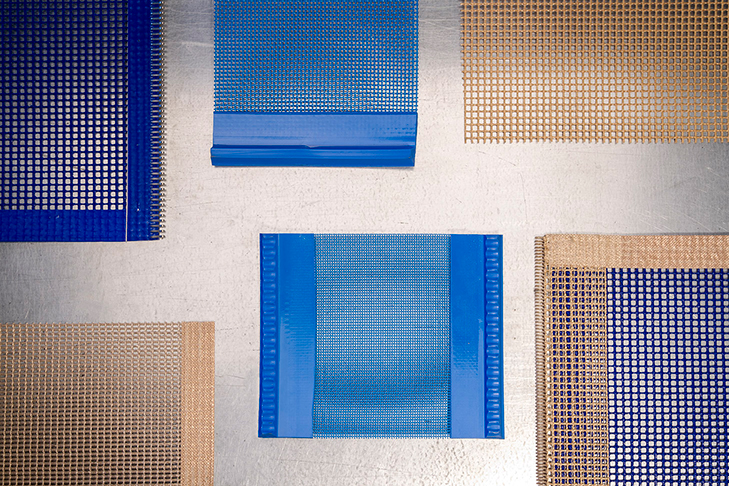

TacMesh industrial mesh conveyor belt

The TacMesh Advantage

Custom belt construction for your process.

●Monofilament and spiral belt constructions
●PES, PPS, and PEEK material options
●Food contact grades available
●Maximum widths up to 4000 mm
●Performance in temperatures up to 482 °F/250°C on select belt constructions


TacMesh Belt Types

Two belt constructions.
Many application possibilities.

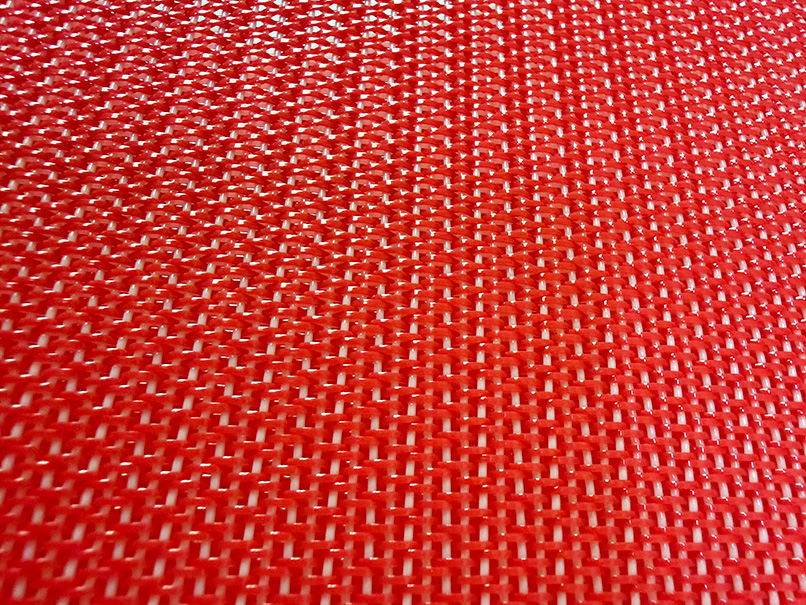

TacMesh monofilament belts for washing drying steam and high speed conveying


Monofilament Belts

Available in PET, PPS, and PEEK, TacMesh monofilament belts offer exceptional resistance to hydrolysis and abrasion while maintaining performance in temperatures up to 482 °F/250°C.

Presses Vacuum Systems Steam Processes

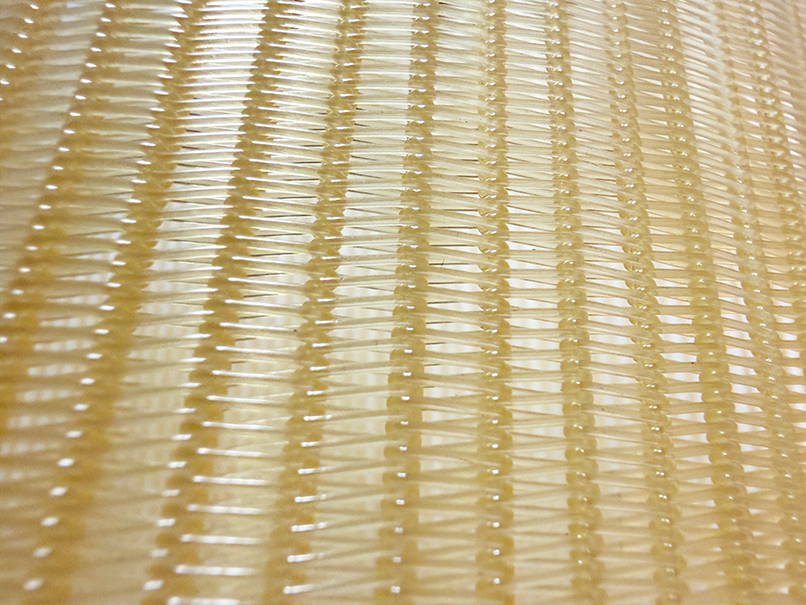

TacMesh spiral belts for drying baking oven loading and unloading


Spiral Belts

Endless spiral belts made from PET, PPS, and PEEK monofilaments are engineered for oven loading and unloading, drying, baking, immersion baking, and high-speed conveying. FDA-certified options are available, with high resistance to hydrolysis and reliable operation in temperatures up to 482 °F/250°C.

Drying Baking High-Speed Conveying

Application Areas

Engineered for drying, forming,
washing and conveying.

Food Processing

Fruit and vegetable washing, pasta drying, steam cooking, pasteurization, drying, baking, and immersion baking.

Textiles & Nonwovens

Reliable mesh belt solutions for drying, conveying, and processing textile and nonwoven materials.

Insulation Forming

Forming belts for thermal and acoustic insulation made from mineral, natural, or synthetic fibers.

Industrial Processing

Recycling, wood-based panels, presses, vacuum systems, washing lines, and high-speed transport applications.



Product Data

TacMesh belt
product options.

Compare TacMesh belt options by width, material type, weave, food contact status, and maximum operating temperature.

Product Maximum Width Material Type / Weave Food Contact Operating Temp
Max °F / °C
1101 White 2540 mm Polyester - Plain Weave Yes 266 / 130
1104 Blue 3500 mm Polyester - Plain Weave Yes 266 / 130
1105 Blue 3500 mm Polyester - Plain Weave Yes 266 / 130
1102 2000 mm Polyester - Plain Weave Yes 266 / 130
1103 2000 mm Polyester - Plain Weave Yes 266 / 130
Multispiral 1306 3000 mm Polyester - Spiral Weave Yes 266 / 130
Multispiral 1307 3000 mm Polyester - Spiral Weave Yes 266 / 130
Multispiral 2308 3000 mm PPS - Spiral Weave Yes 356 / 180
3109 PEEK 2000 mm PEEK Spiral - Plain Weave Yes 464 / 240
2110 2000 mm PPS - Plain Weave Yes 356 / 180
1211 AS 3700 mm Polyester - Heavy Weave No 266 / 130
1213 AS 3500 mm Polyester - Heavy Weave No 266 / 130
1212 4000 mm Polyester - Heavy Weave No 266 / 120

The data herein are averages based on the authoritative testing of several lot numbers. This information is intended for comparison purposes only. Product availability, belt construction, edging, tracking guides, and joint configurations should be reviewed with Taconic for each application.



Custom Built Belts

Joint types and
edge reinforcements.

TacMesh belts can be customized with a range of joint types, edging options, tracking guides, and reinforcements to meet process requirements and support long-term performance in demanding production environments.

Application-Specific Design

Belts can be specified for drying, washing, cooking, forming, conveying, vacuum, and high-speed operations.

Material Selection

PES, PPS, and PEEK options help match belt performance to heat, abrasion, hydrolysis, chemical exposure, and process requirements.

Food Approved Options

Many TacMesh constructions are approved for food contact, making them suitable for demanding food processing applications.

TacMesh Belt Support

Need a mesh belt
built for your process?

Whether your application requires a food contact drying belt, steam cooking belt, forming belt, washing belt, spiral belt, or custom monofilament conveyor belt, Taconic can help identify the right TacMesh construction.
