PTFE Materials for Renewable Energy Manufacturing
Renewable Energy
Material Solutions
Taconic manufactures high-performance PTFE coated fabrics, tapes, films, foils, and belting materials for demanding renewable energy production environments.
From wind turbine blade manufacturing and solar panel lamination to hydrogen fuel cell component production, Taconic materials help improve release performance, process consistency, dimensional stability, surface quality, and manufacturing efficiency.
Application Overview
Materials built for the energy transition.
Engineered for production reality.
Renewable energy manufacturing depends on materials that can handle heat, pressure, adhesion, release, abrasion, dimensional movement, and continuous production demands.
Taconic supports these processes with PTFE coated fiberglass fabrics, anti-static belting, Kevlar reinforced belt constructions, adhesive backed release tapes, PTFE film tapes, and custom fabricated components.
Renewable Energy Applications
One fast-moving market.
Multiple production challenges.

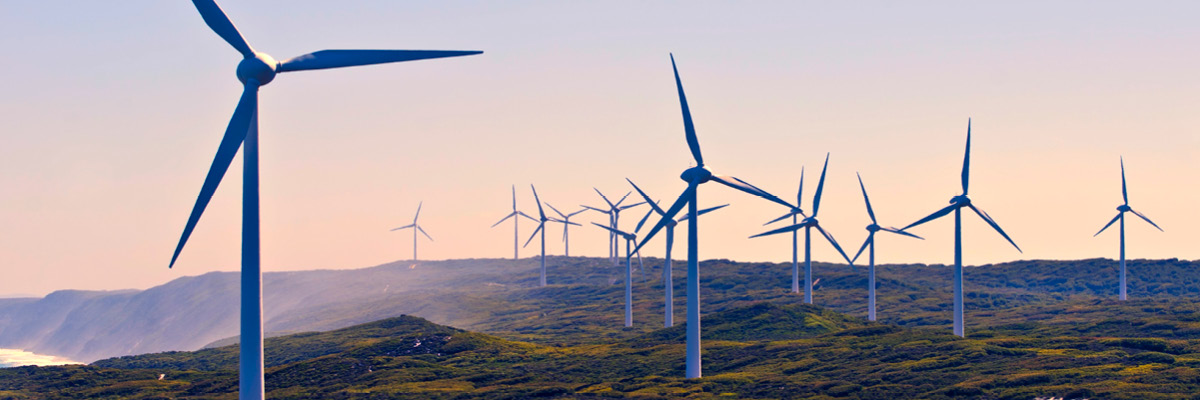

Wind Turbine Blade Manufacturing
Clean release.
More productive blade molds.
Taconic engineers PTFE coated tapes and fabrics to act as efficient, cost-effective release surfaces for hand lay-up and open mold composite processes used in wind turbine blade production.

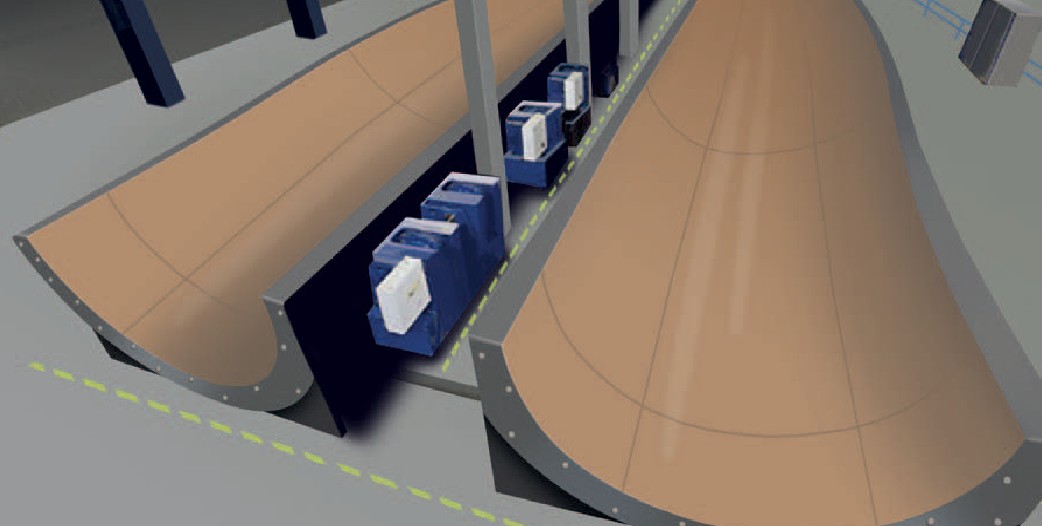

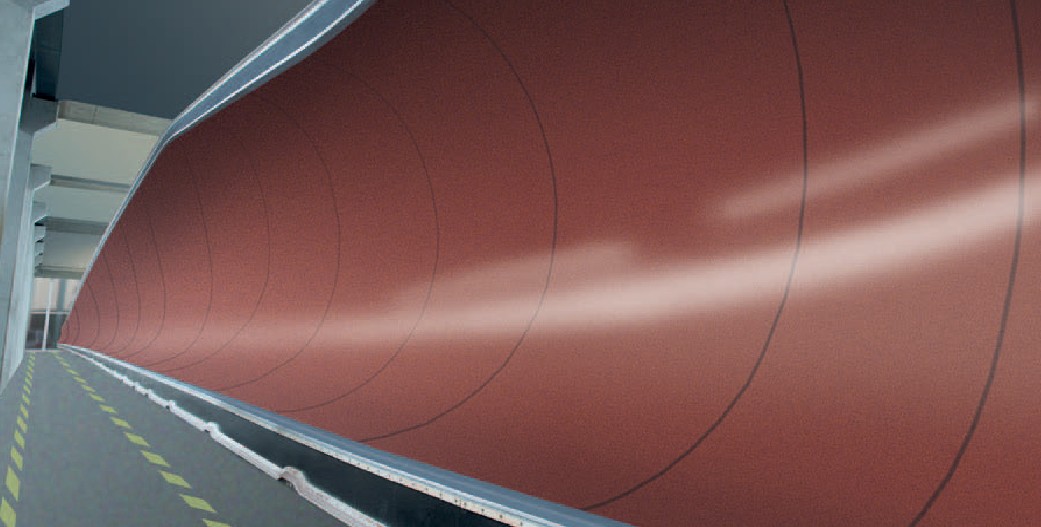

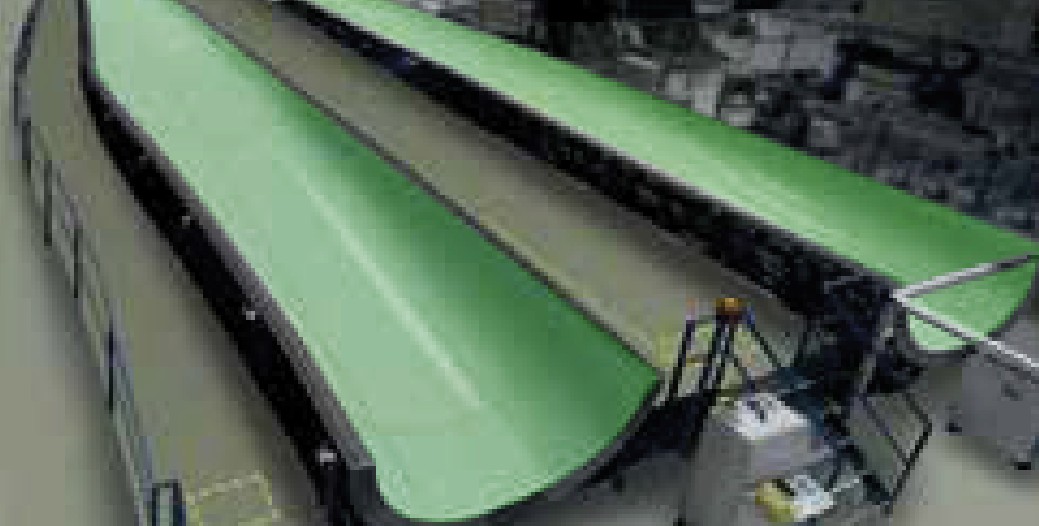

TacWind is a flexible, self-adhesive mold release liner used during the hand lay-up process to help provide clean removal from the completed blade, smooth blade surfaces, easier tool cleaning, and a higher number of production pulls.
Wind Energy Product Options
Release surfaces and films
for blade production.
| Product | Thickness | Adhesive Type | Adhesive Strength | Operating Temp | Typical Use |
|---|---|---|---|---|---|
| TacWind Green | 0.008 in | Silicone | 55 oz | -100 / 500°F | Elite mold release liner |
| TacWind Red | 0.008 in | Silicone | 55 oz | -100 / 500°F | Premium mold release liner |
| TacWind Brown | 0.008 in | Silicone | 55 oz | -100 / 500°F | Standard mold release liner |
| 6085-05 / 6085-06 | 0.007 / 0.008 in | Silicone | 55 oz | -100 / 500°F | PTFE tape |
| 6115-03 / 6445-02 | 0.005 / 0.004 in | Silicone | 37 / 25 oz | -100 / 500°F | Film tape |
The data herein are averages based on authoritative testing of several lot numbers. This information is intended for comparison purposes only.

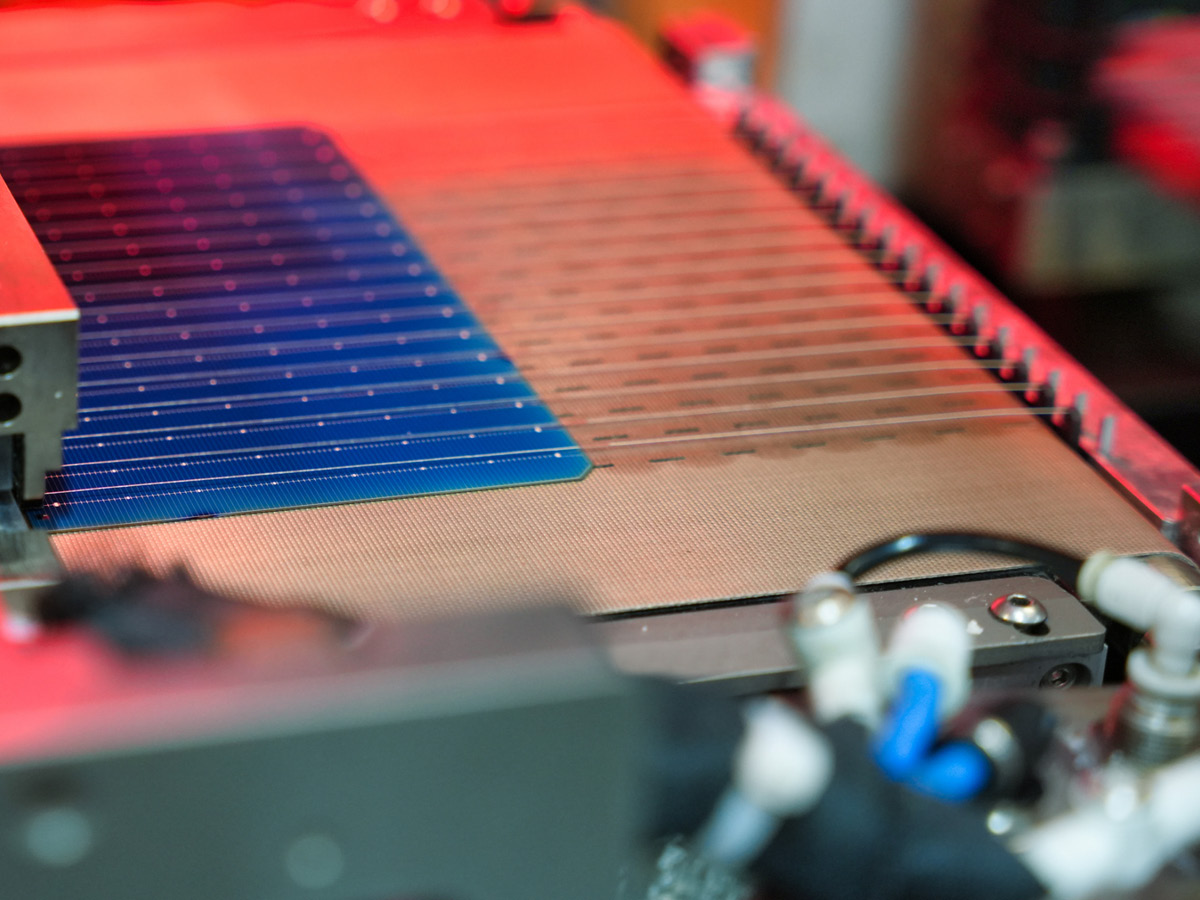

Solar Panel Lamination
Reliable release.
For reliable PV module output.

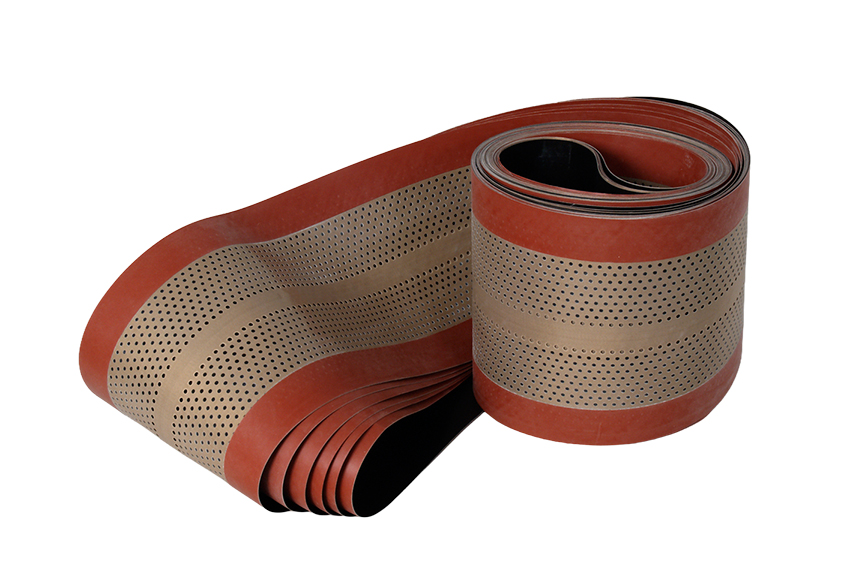

Taconic PTFE and anti-static fiberglass and Kevlar belt materials are used in the lamination process of rigid and flexible photovoltaic modules.
PTFE coated materials offer optimal release and excellent heat resistance, helping solar manufacturers increase efficiency through time savings, cost reductions, and improved end-product quality.
Solar Product Options
PTFE belting materials
for PV module lamination.
| Product | Coating | Fabric Type | Thickness | Tensile Strength | Max Width | Temp Resistance |
|---|---|---|---|---|---|---|
| 7108 | PTFE | Fiberglass | 0.0090 in | 285 lbs/in | 62 in | 500°F / 260°C |
| 7103AS | PTFE Anti-Static | Fiberglass | 0.0095 in | 280 lbs/in | 94 in | 500°F / 260°C |
| 7148 | PTFE | Fiberglass | 0.0135 in | 400 lbs/in | 104 in | 500°F / 260°C |
| 7143AS | PTFE Anti-Static | Fiberglass | 0.0140 in | 400 lbs/in | 104 in | 500°F / 260°C |
| 715KAS | PTFE Anti-Static | Kevlar | 0.0146 in | 620 lbs/in | 106 in | 500°F / 260°C |
| 7153AS | PTFE Anti-Static | Fiberglass | 0.0140 in | 455 lbs/in | 128 in | 500°F / 260°C |
The data herein are averages based on authoritative testing of several lot numbers. This information is intended for comparison purposes only. Check with your Taconic sales representative for width availability and material alternatives.

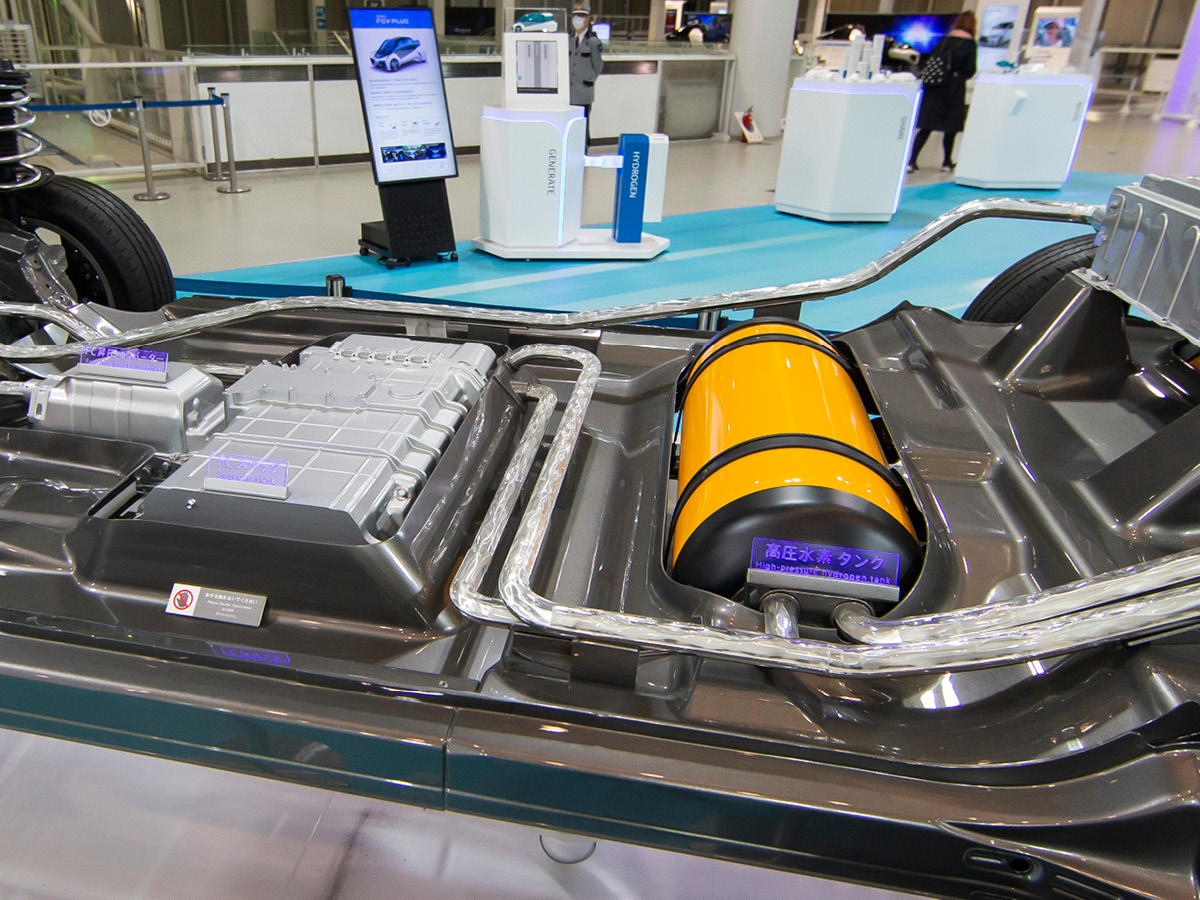

Hydrogen Fuel Cell Materials
Stable carriers.
Cleaner transfer and release.
Taconic PTFE coated fiberglass fabrics for hydrogen fuel cell component production offer a dimensionally stable coating carrier during anode and cathode roll-to-roll coating processes.
These materials provide clean release during transfer and decal lamination onto the PEM to make the MEA, helping manufacturers reduce costs, improve production processes, and increase end-product reliability.
Fuel Cell Production Support
PTFE coated fabrics and tapes
for PEM and COPV processes.
Fuel Cell Product Options
Smooth surfaces and stable carriers
for fuel cell production.
| Product | Thickness | Coated Weight | Tensile Strength | Tear Strength | Operating Temp | Dielectric Strength |
|---|---|---|---|---|---|---|
| 7030-1 | 0.0033 in | 0.33 lbs/sq yd | 90 / 55 lbs/in | 3.4 / 2.7 lbs | -100 / 500°F | 3500 volts/mil |
| 7030-1S | 0.0033 in | 0.33 lbs/sq yd | 90 / 55 lbs/in | 3.4 / 2.2 lbs | -100 / 500°F | 5000 volts/mil |
| 7069 | 0.006 in | 0.59 lbs/sq yd | 175 / 160 lbs/in | 5.0 / 4.0 lbs | -100 / 500°F | 6000 volts/mil |
| 6085-06 | 0.0077 in | N/A | 185 / 170 lbs/in | 5.0 / 4.5 lbs | -100 / 500°F | 8000 volts/mil |
| 6115-05 | 0.0072 in | N/A | 15 / N/A lbs/in | N/A | -100 / 500°F | 12000 volts/mil |
The data herein are averages based on authoritative testing of several lot numbers. This information is intended for comparison purposes only. Other product thicknesses and coated film or foil versions may be available.
Custom Engineering Support
Need something specific?
We can help build it.
Taconic can coat a variety of polymers on substrates including glass, film, and carbon fiber to meet demanding renewable energy production requirements.
Custom options may include adhesive systems, widths, splices, edging, CNC cut profiles, film and foil versions, alternative thicknesses, and bespoke coated solutions up to 4000 mm wide.
Renewable Energy Material Support
Building better renewable energy products?
Start with Taconic.
Whether your process requires wind blade release liners, solar panel lamination belts, fuel cell coating carriers, COPV release fabrics, or custom PTFE coated materials, Taconic can help identify the right construction for your application.
