Open Mesh Fabric
Open Mesh
PTFE Coated
Kevlar & Fiberglass
Fabric

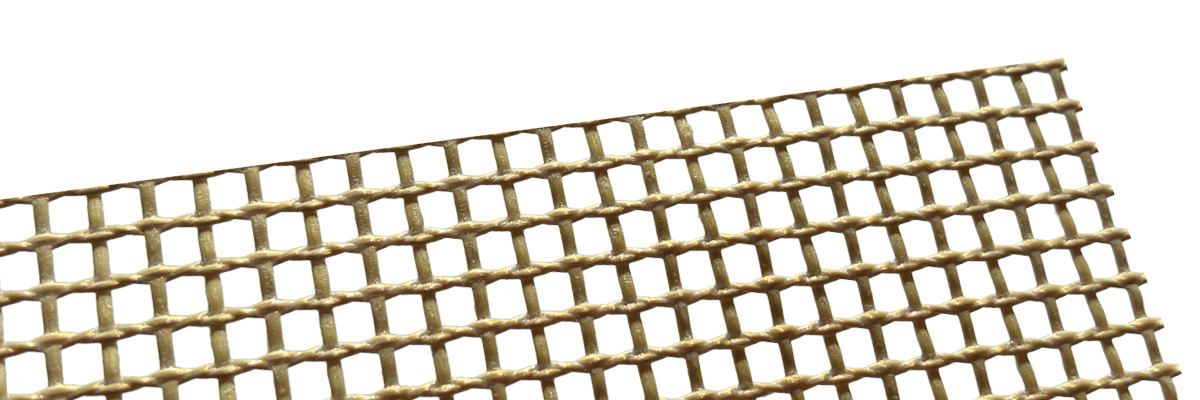

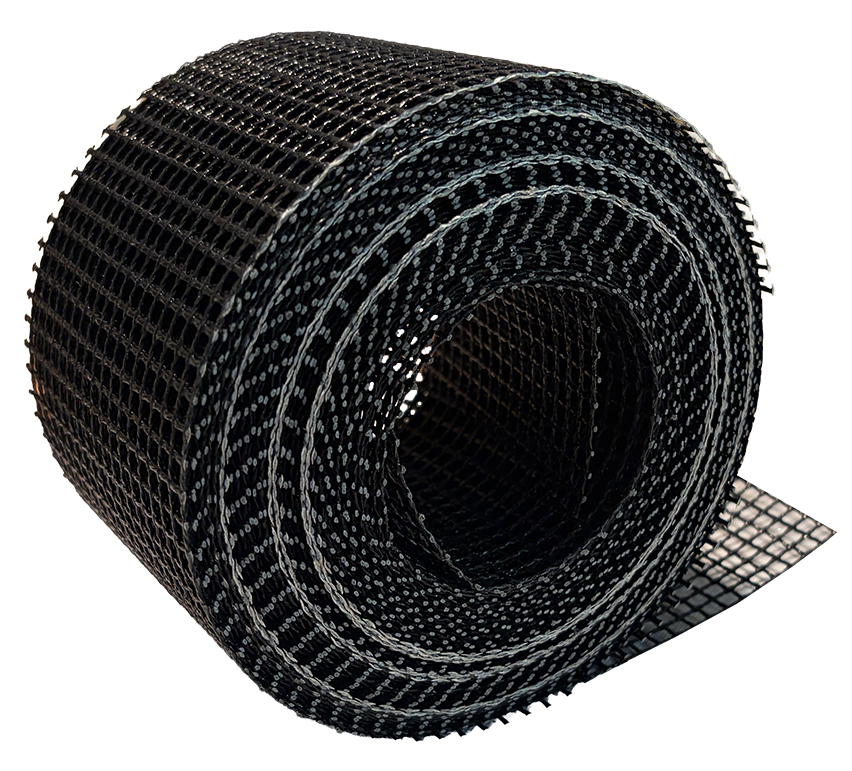

Taconic open mesh PTFE coated fiberglass and Kevlar® fabric is designed for high temperature applications where airflow, heat transfer, drying efficiency, and conveyor belt performance are critical.
The open mesh construction allows air to pass through the fabric while the PTFE coating provides release properties, heat resistance, chemical resistance, dimensional stability, and durable processing performance.
Open mesh PTFE fabric is commonly used for drying belts, curing belts, conveyor belts, food processing, textile processing, screen printing, packaging, bonding, and other processes where ventilation and non-stick performance are required.
(Kevlar® is a registered trademark of E.I. du Pont de Nemours and Company.)
Performance Advantages
Why choose this
fabric construction?
Airflow
Open mesh construction allows airflow through the fabric, making it useful for drying, curing, cooling, and ventilation-dependent processes.
Heat Transfer
Supports efficient heat movement through the belt or fabric surface for high temperature process applications.
Drying Efficiency
The open structure helps promote drying and outgassing of volatile products in curing, bonding, and textile applications.
Conveyor Performance
Provides strength, dimensional stability, release performance, and wear resistance for fabricated open mesh conveyor belts.
Mesh Opening Options
Open Mesh styles for
airflow and process control.

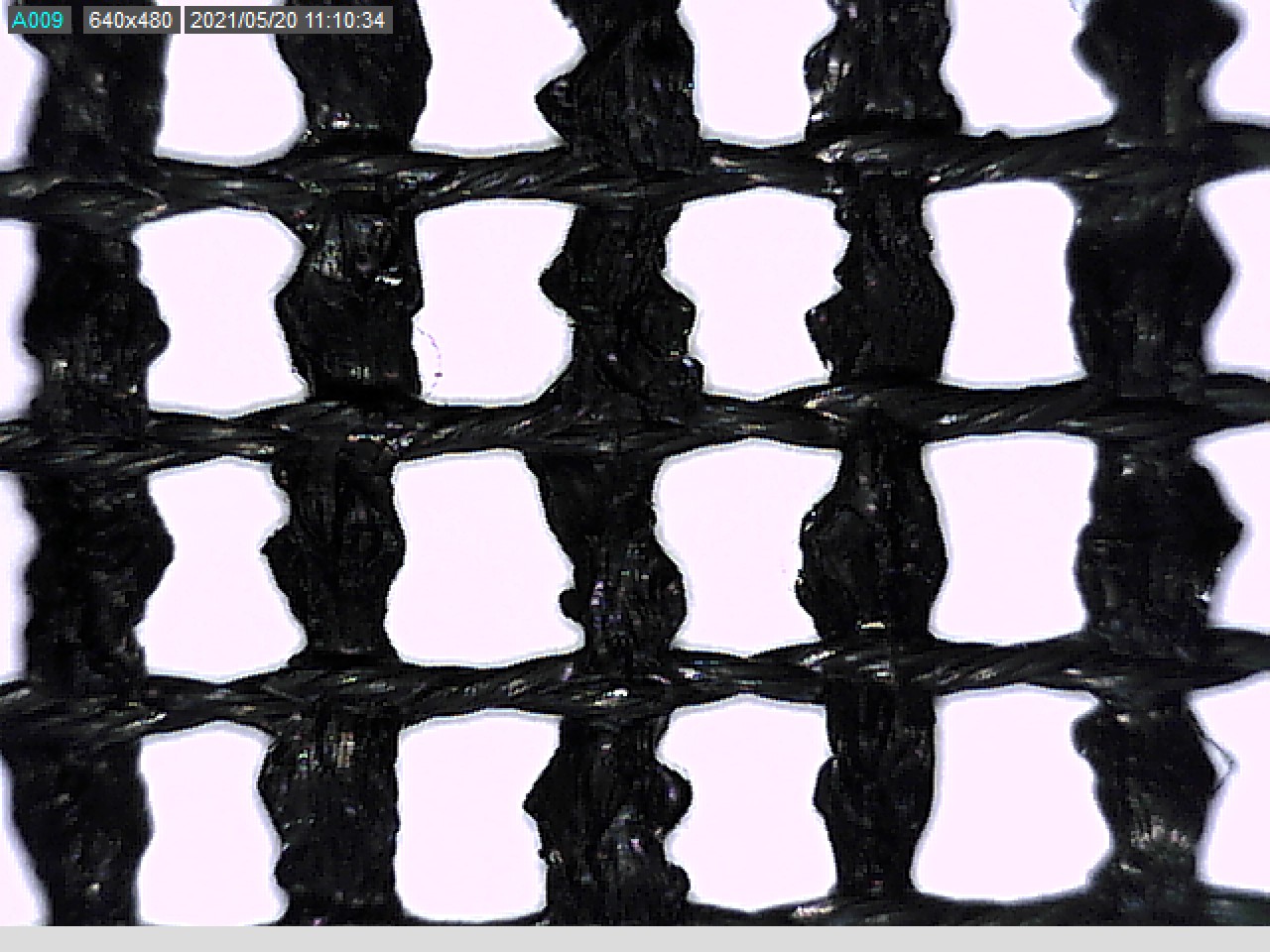

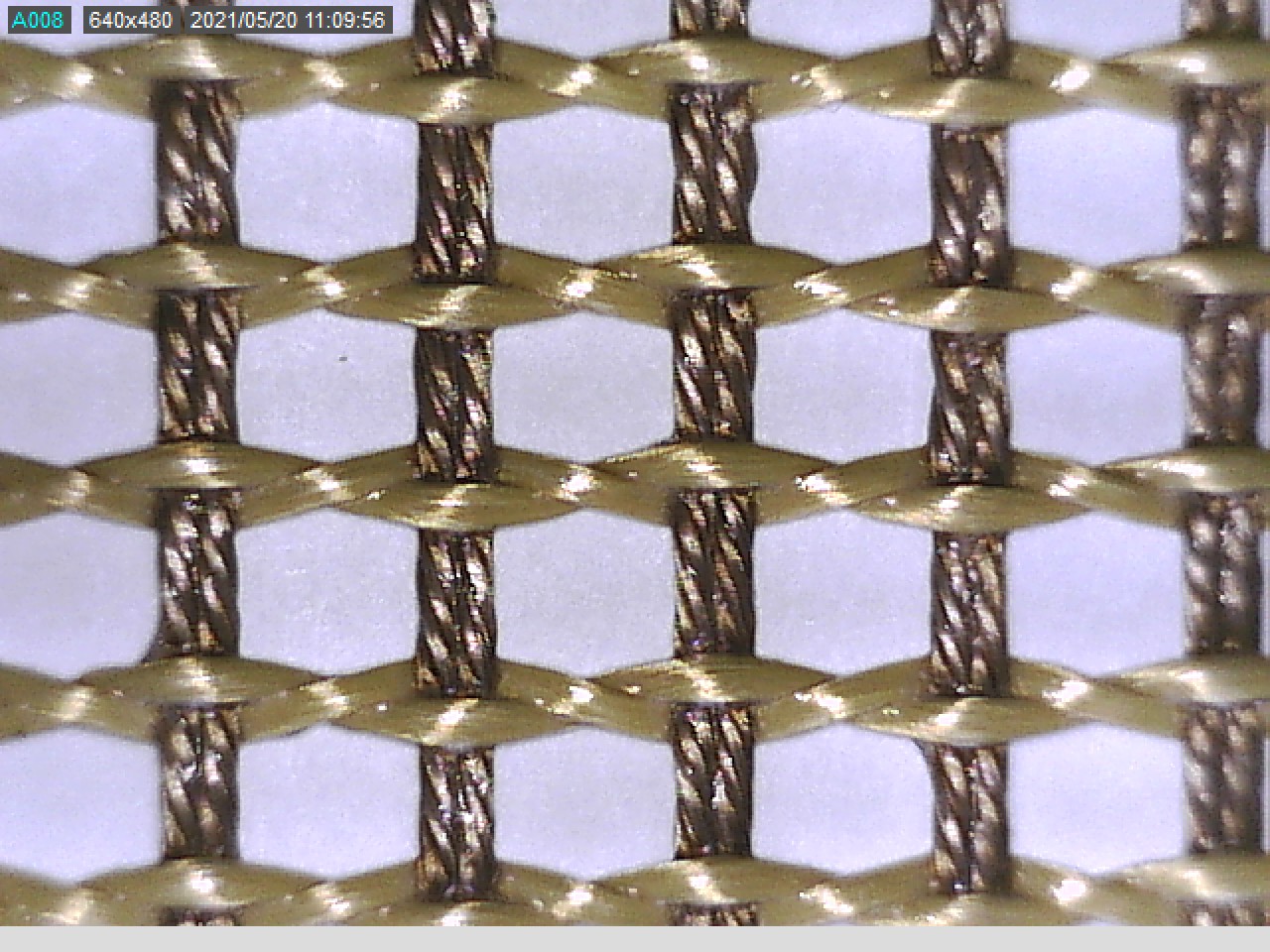

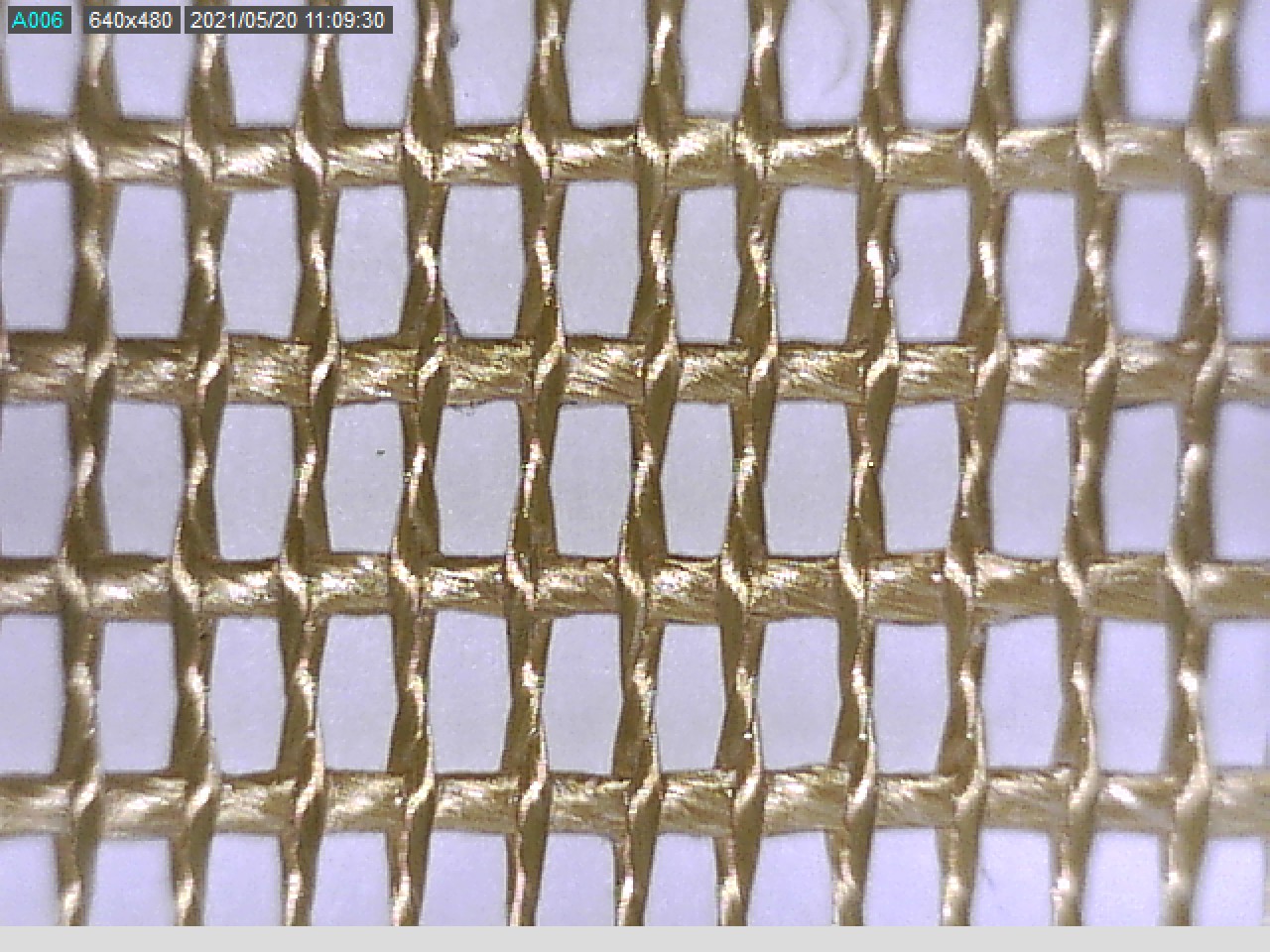

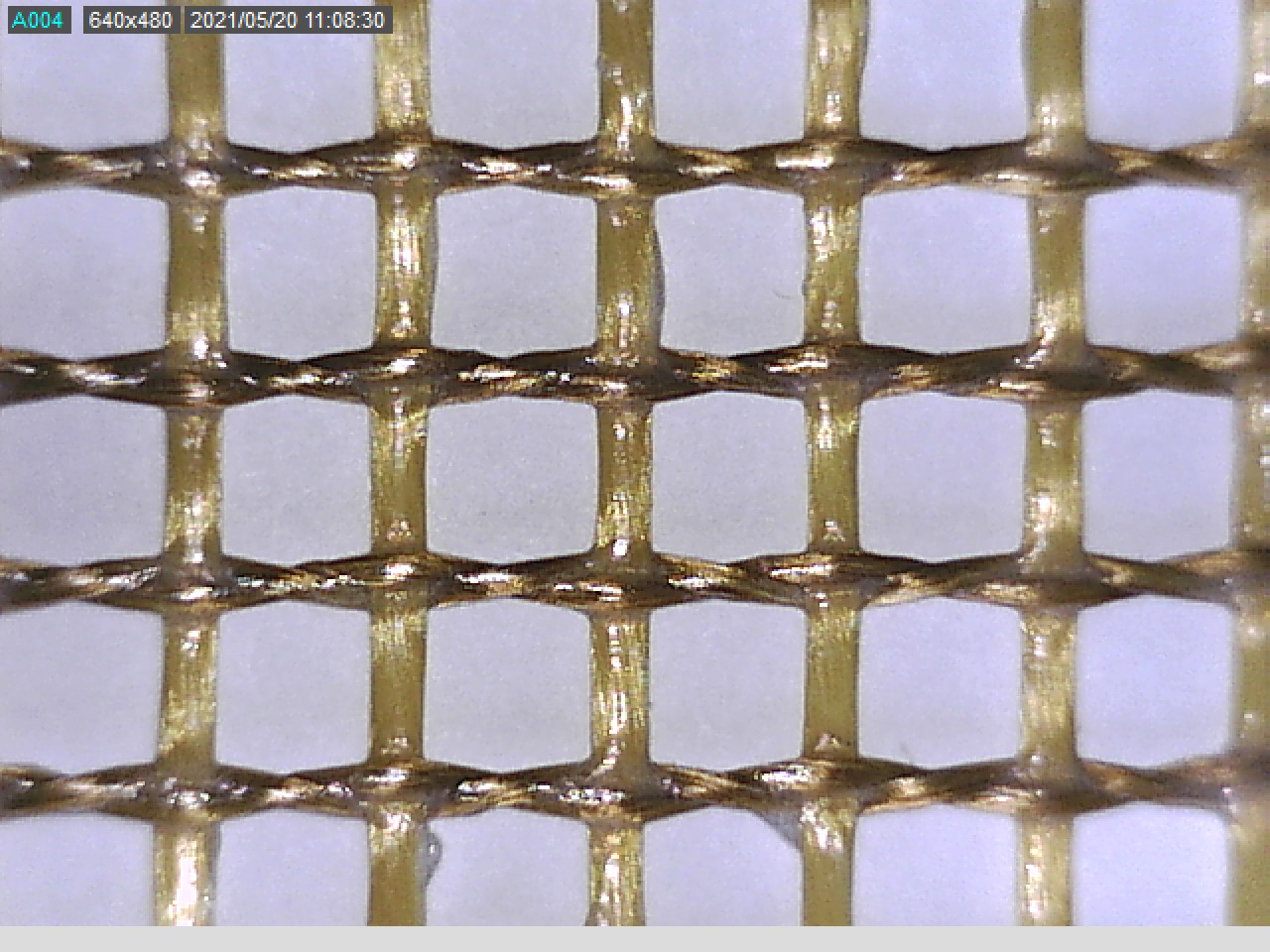

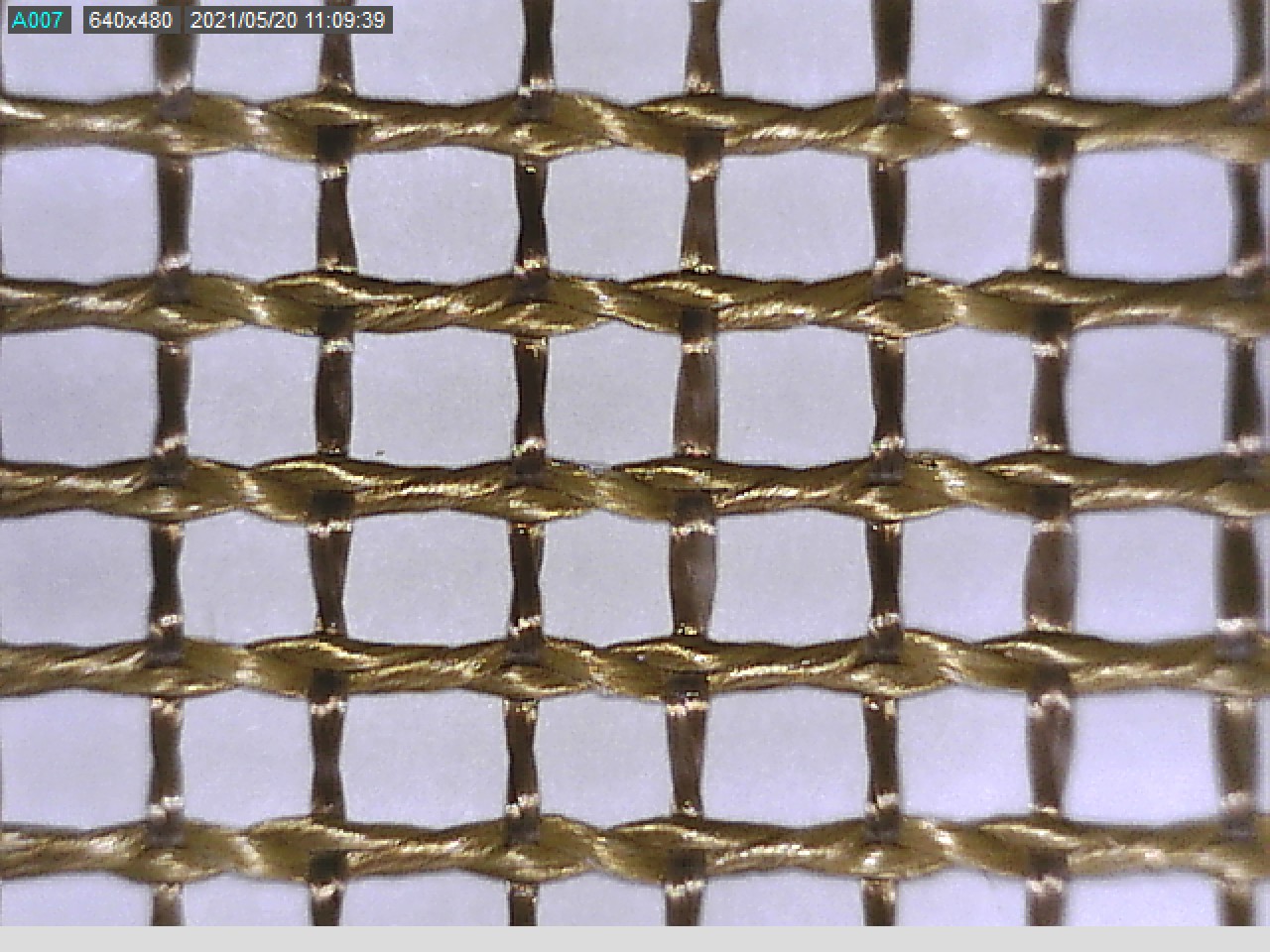

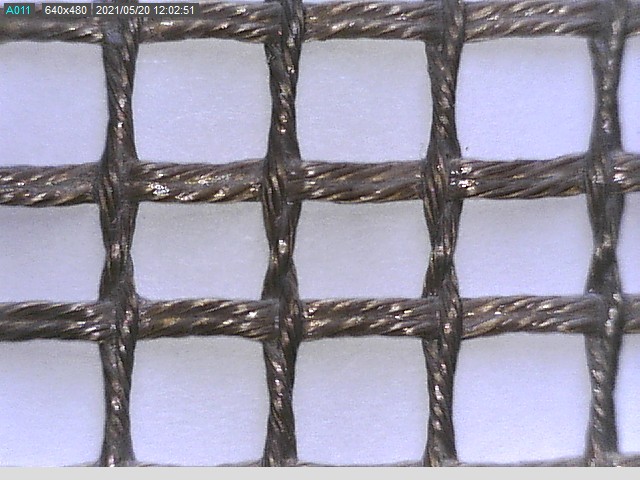

Taconic offers multiple PTFE coated open mesh fabric constructions, including small, standard, large, Kevlar®, double fill, heavy coated, and textured mesh styles.
(Kevlar® is a registered trademark of E.I. du Pont de Nemours and Company.)
Product Values
Open Mesh
PTFE coated fiberglass
& Kevlar® fabric
products and specifications.
Compare available open mesh PTFE coated fiberglass fabric products by mesh opening, thickness, coated weight, tensile strength, and maximum width.
Product numbers link to product pages with more information and data sheets.
| Description | Mesh Opening | Product Page | Nominal Thickness (Inches) | Coated Weight (lbs/sq yd) | Tensile Strength Warp/Fill (lbs/inch) | Standard Widths (inches/mm) |
|---|---|---|---|---|---|---|

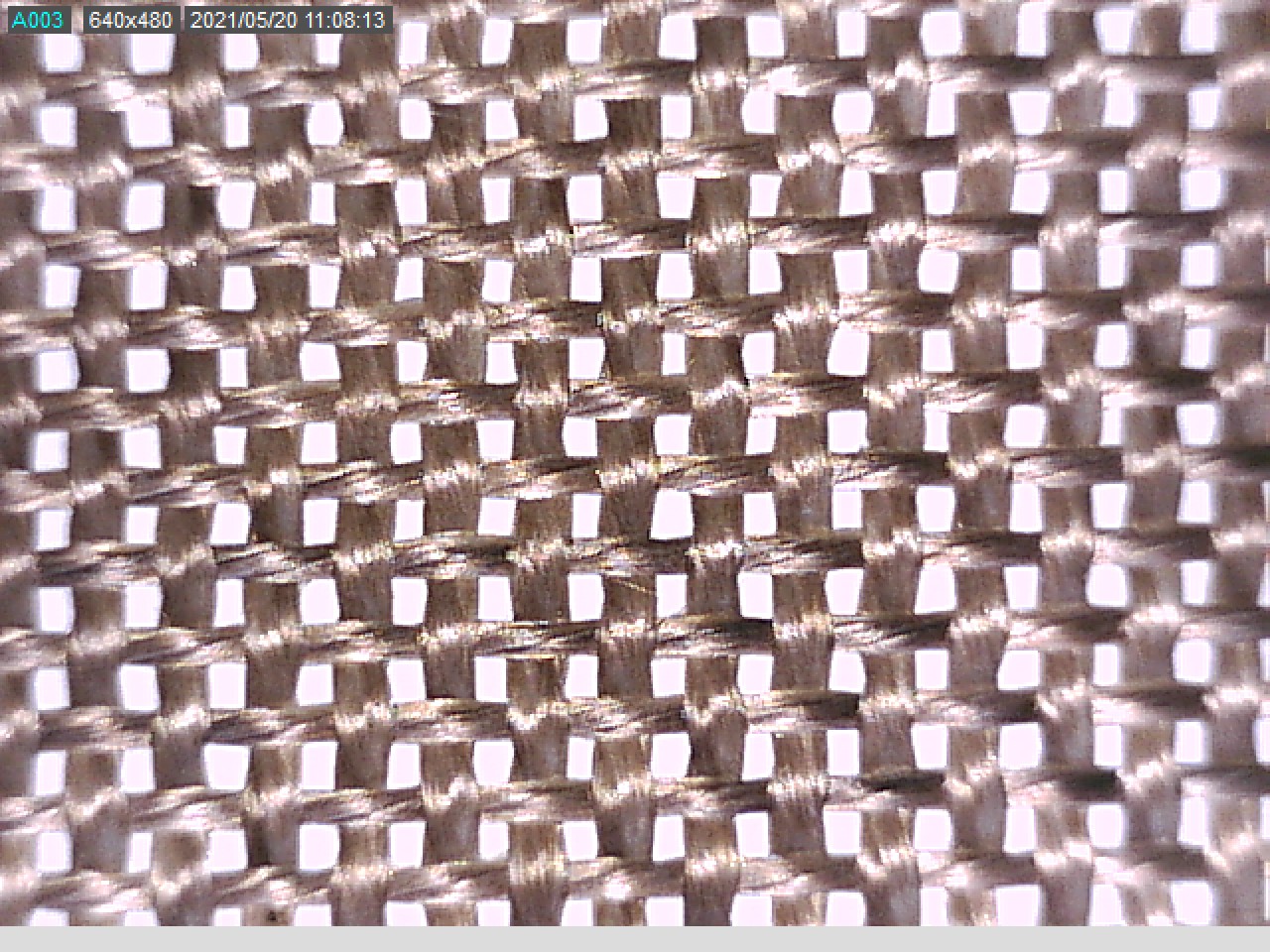

| Small Open Mesh | 1x1 | 8195 | 0.019 | 0.95 | 200/190 | 72 / 1829 |

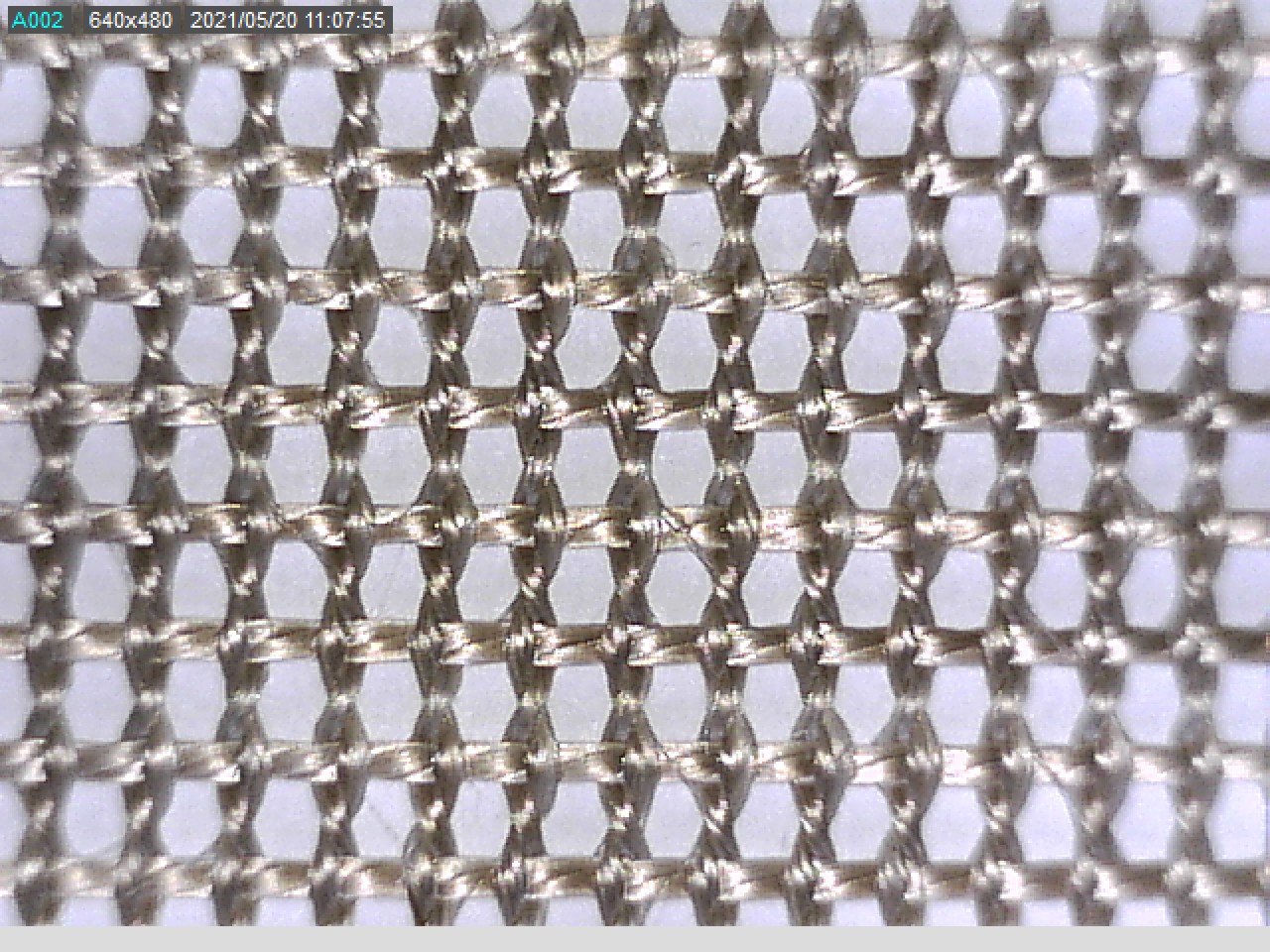

| Small Open Mesh | 2x2 | 8255 | 0.029 | 0.82 | 165/185 | 160 / 4064 |
| Standard Open Mesh | 4x4 | 8303 Black | 0.035 | 0.90 | 225/225 | 189 / 4801 |
| Standard Open Mesh | 4x4 | 8308 Brown | 0.035 | 0.90 | 225/175 | 189 / 4801 |

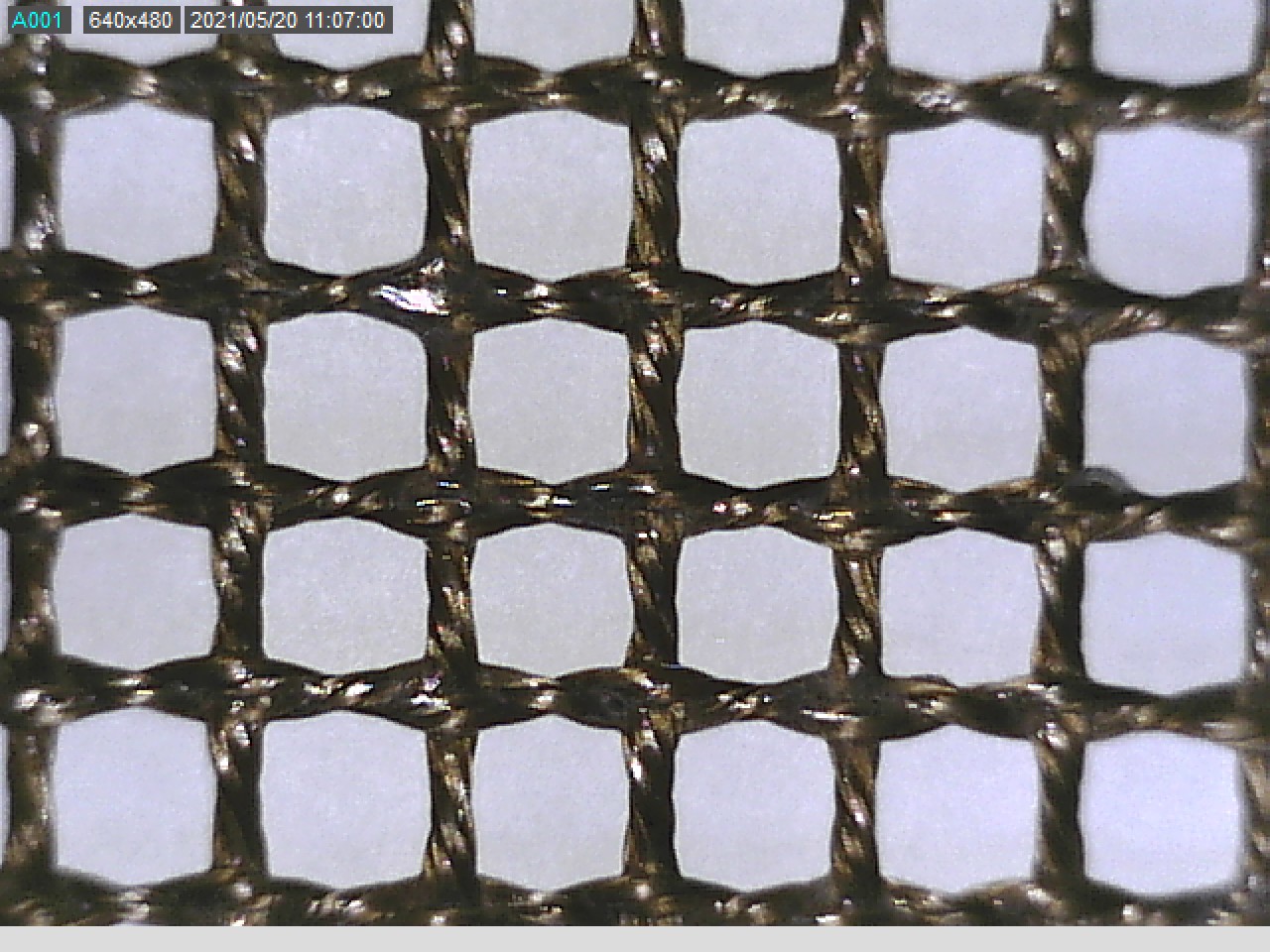

| Standard Open Mesh | 4x4 | A970 Tan | 0.033 | 0.89 | 225/175 | 189 / 4801 |

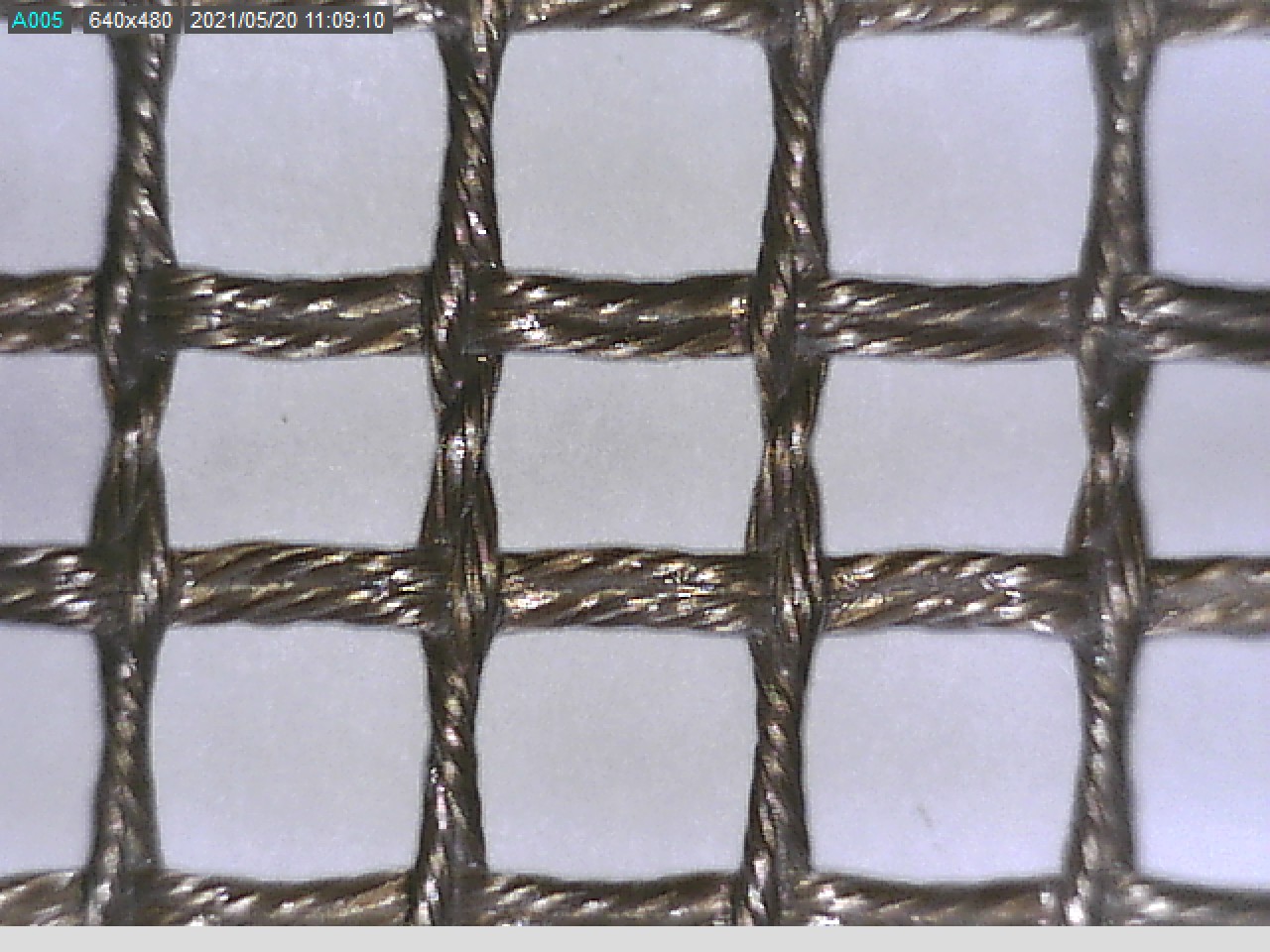

| Large Open Mesh | 7x7 | A1095DF | 0.0450 | 1.12 | 250 | 133 / 3378 |

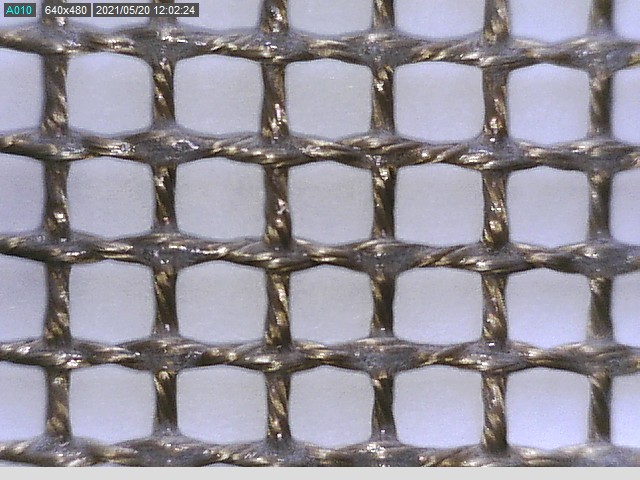

| Heavy Coat Weight Open Mesh | 4x4 | A1028 | 0.0356 | 0.96 | 225 | 189 / 4801 |
The data herein are averages based on the authoritative testing of several lot numbers. This information is intended for comparison purposes only. Maximum continuous operating temperature is 500°F / 260°C for open mesh belts not including Kevlar® constructions.
Kevlar® is a registered trademark of E.I. du Pont de Nemours and Company.
Common Applications
Built for focused
industrial use cases.

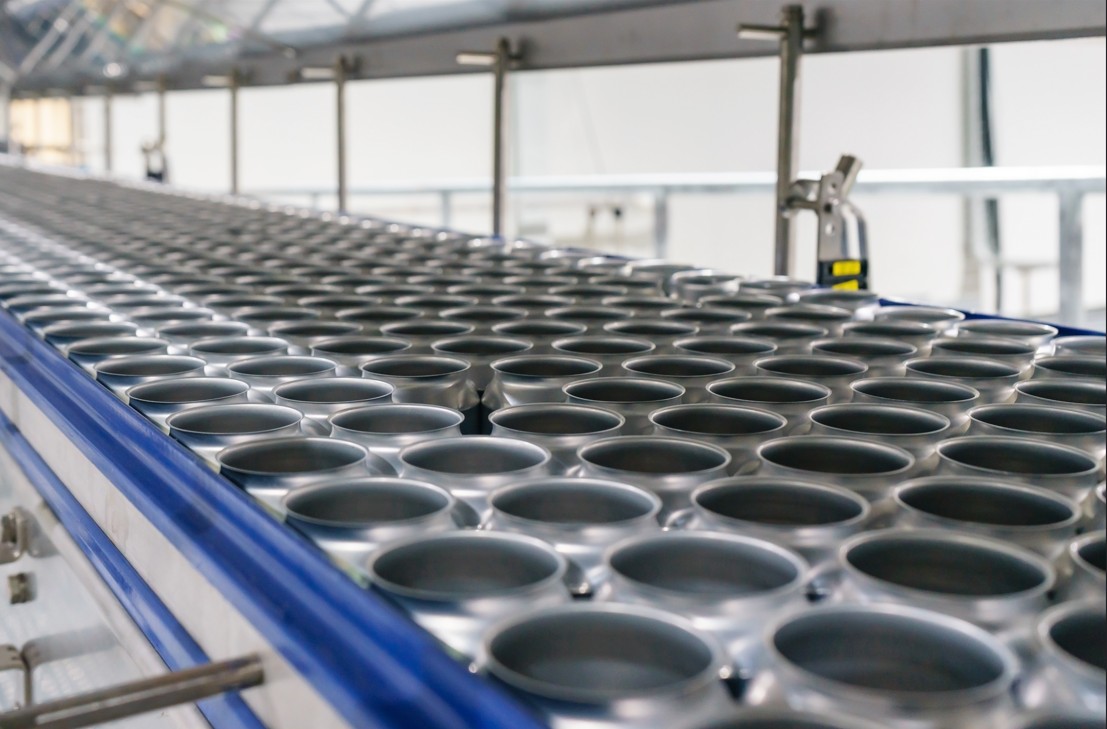

Open mesh PTFE coated fiberglass fabrics are used where airflow, release performance, high temperature resistance, and dimensional stability support drying, curing, conveying, bonding, and textile processing.
Fabric FAQ
Common questions about
open mesh fabric.
What is Open Mesh PTFE fabric used for?
Open mesh PTFE fabric is used for drying, curing, conveying, bonding, food processing, textile processing, screen printing, and applications requiring airflow through the belt or fabric.
How is Open Mesh fabric different from solid PTFE coated fabric?
Open mesh fabric has an open weave construction that allows airflow and outgassing, while solid PTFE coated fabric provides continuous, non-porous, release surface.
Can Open Mesh PTFE fabric be converted into conveyor belts?

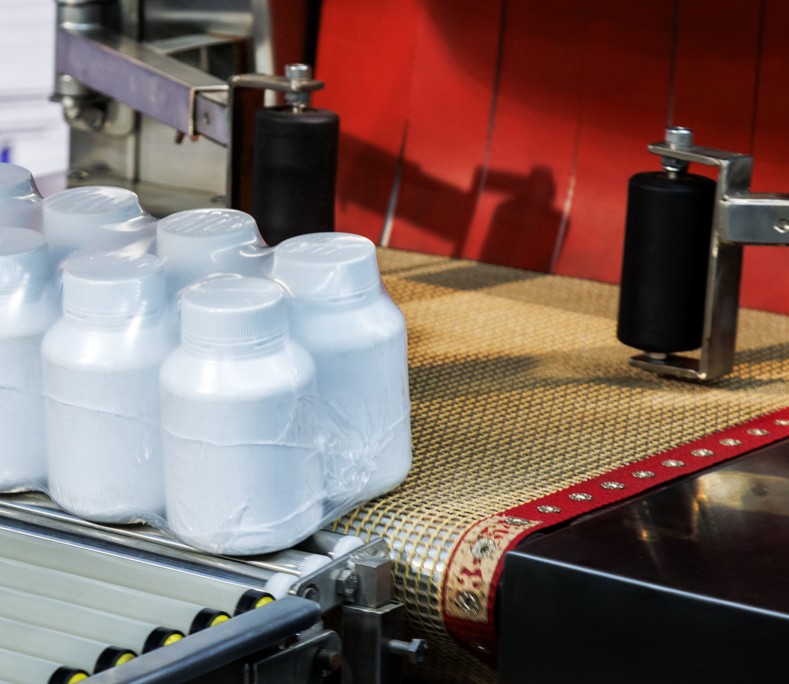

Yes. Open mesh PTFE fabric is commonly used in conveyor belt applications that require airflow, heat transfer and drying performance while still maintaining release properties.
Need help selecting a fabric?
Taconic can help match mesh opening, airflow, belt construction, thickness, release performance, tensile strength, and coating type to your application.
