PTFE Coated Fiberglass Belting
Nonstick Tortilla
Press Belts
Taconic manufactures high-performance nonstick tortilla press belts engineered to keep production lines running smoothly. Designed for demanding tortilla industry applications, these belts provide dependable release, temperature resistance, chemical resistance, oil and grease resistance, and long-lasting performance under heat and compression.
With advanced PTFE coated fiberglass constructions and a strong focus on quality control, Taconic tortilla press belts are built to reduce belt changeovers, improve productivity, and deliver consistent performance in high-volume production environments.
Key Features: Nonstick Release Temperature Resistant Oil & Grease Resistant Chemical Resistant Fewer Belt Changeovers FDA Compliant Options
Five options.
One for your exact line.
Taconic tortilla press belts are engineered to support consistent release, reduced downtime, and dependable performance in demanding tortilla production environments.

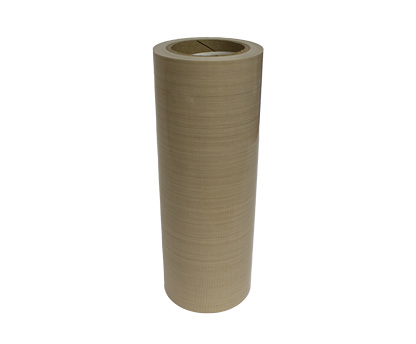

8108
Standard classification 10 mil woven fiberglass material for tortilla industry applications. Lowest price of the available products. Potential for grease staining with use.
Cost Effective Standard Option

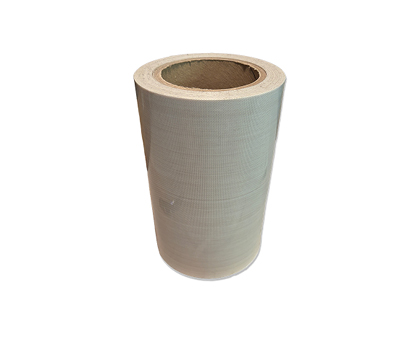

8109
Offers the benefits of 8108 with a slightly thicker, more durable coating. Potential for grease staining with use.
Durable Coating Nonstick Release

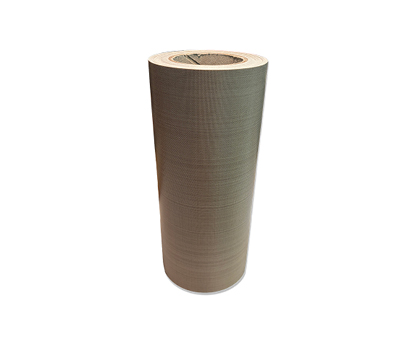

A1046
Designed specifically to address grease and compression force issues commonly found in tortilla production. Contains a non-stain coating structure with a deep tan color.
Grease Resistant Non-Stain Coating

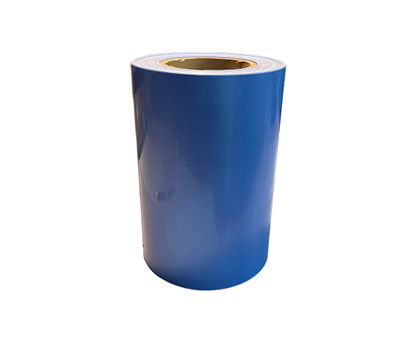

A1139
Highest performance option with wear resistive additives designed for demanding tortilla production environments. Attractive blue in color.
Highest Performance Wear Resistant
TL7100
Designed with heat transfer in mind. Provides faster heat transfer than 8108, 8109, A1046, and A1139.
Fast Heat Transfer Processing Efficiency
More than a belt.
A production partner.
R&D Driven Innovation
Taconic’s engineering team continuously develops application-specific materials designed to solve common production challenges, including grease resistance, compression forces, release performance, and belt wear.
Quality Control & Testing
Each coated master roll goes through rigorous testing to help ensure consistent quality, including tensile strength, tear strength, dielectric strength, and adhesion testing.
Durable Belt Performance
High-performance nonstick belt materials help reduce belt changeovers while supporting consistent release, clean product handling, and reliable operation in demanding production environments.
Dependable Service
Taconic’s customer service team supports customers before, during, and after purchase, helping answer questions and address concerns throughout the life of the product.
Numbers that back
every belt we make.
| Product |
Thickness
(in) |
Coated Wt
(lbs/sq yd) |
Tensile
W/F (lbs/in) |
Tear
W/F (lbs) |
Dielectric
(v/mil) |
Temp
Min/Max °F |
| 8108 |
0.009 |
0.92 |
285 / 185 |
12.0 / 7.0 |
600 |
-100 / 500 |
| 8109 |
0.01 |
1.00 |
300 / 175 |
10.0 / 8.0 |
650 |
-100 / 500 |
| A1046 |
0.01 |
1.00 |
300 / 150 |
9.5 / 5.0 |
485 |
-100 / 500 |
| A1139 |
0.0105 |
1.00 |
270 / 165 |
10.5 / 6.0 |
680 |
-100 / 500 |
| TL7100 |
0.0075 |
0.71 |
184 / 145 |
12.5 / 6.0 |
900 |
-100 / 500 |
Averages based on authoritative testing of several lot numbers. Intended for comparison purposes only.
Protect your belt.
Protect your uptime.
Proper handling and cleaning help protect belt performance and service life. Once you have your Taconic tortilla press belts, it is important to understand how to correctly maintain them.
General Handling Guidelines
- —Keep all hard objects off the belt.
- —Do not drag the belt over irregular surfaces.
- —Do not stack objects on the belt when the machine is idle.
- —Keep belt flat during installation.
- —Do not fold or crease the belt.
- —Do not scrape or scratch the belt surface.
How to Clean a Tortilla Press Belt
- —Rinse belt with water and apply FDA approved detergent.
- —Clean only with a soft sponge.
- —Rinse detergent off the belt thoroughly.
- —Dry the belt with an absorbent cloth.
- —Never use abrasive cleaning pads.
- —Never use hard plastic, wood, or steel to scrape the belt.
- —Do not fully submerse the belt in a large sink or tank.
This use and care guide is also available in poster size for employee reference. Contact us to request a copy.
Ready to Order?
Let’s find the right belt
for your production line.
Contact Taconic to discuss your tortilla production line, operating conditions, release requirements, cleaning process, and belt performance needs.
Contact Taconic
