PTFE Glass Cloth Tapes
PTFE Glass Cloth
Adhesive and
Insulation
Tapes

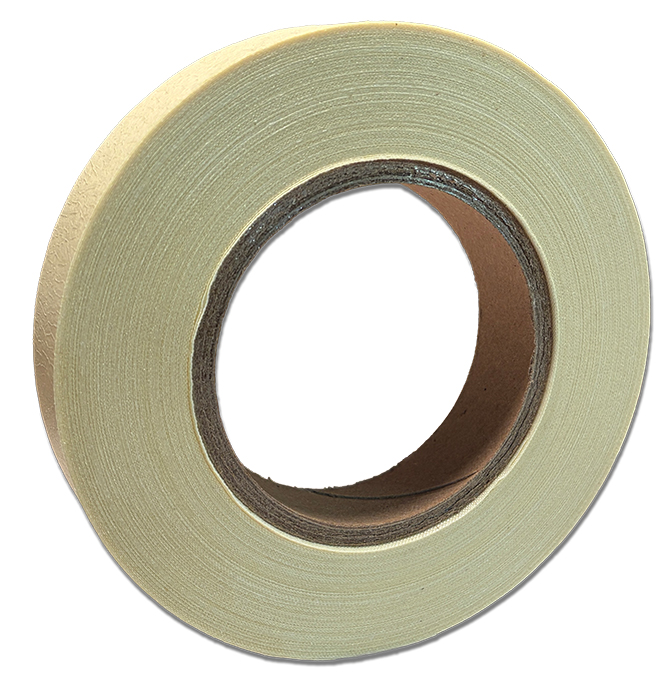

Taconic PTFE glass cloth tapes combine fiberglass cloth reinforcement with high performance adhesive systems to support applications requiring flexibility, cut-through resistance, dielectric performance, and durable high temperature masking or insulation.
Glass cloth adhesive tapes are used in electrical insulation, high temperature masking, protection, wrapping, reinforcing, aerospace, automotive, and manufacturing environments where flexibility and strength are important.
Available with adhesive coated on one or two sides, Taconic glass cloth tapes provide versatile performance for applications where a reinforced adhesive tape construction is required.
Performance Advantages
Why choose
ptfe glass cloth
adhesive and insulation
tapes?
Excellent flexibility
Fiberglass cloth reinforcement helps the tape conform around surfaces while maintaining strength in wrapping, masking, and insulation applications.
Cut-through resistance
Reinforced glass cloth construction helps protect against sharp edges, abrasion, and demanding industrial process conditions.
One-side and two-side adhesive options
Select constructions are available with adhesive on one or two sides for bonding, wrapping, reinforcing, and specialty fabrication needs.
High temperature insulation performance
Glass cloth backing and high temperature adhesive options support insulation and protection in elevated temperature environments.
Common Applications
Built for focused
industrial tape applications.
PTFE glass cloth tapes are used where flexibility, cut-through resistance, dielectric performance, and high temperature durability help protect equipment, components, and production processes.
Product Values
Available products
and specifications.
Compare available ptfe glass cloth tapes by total thickness, adhesive thickness, adhesive type, adhesive strength, operating temperature range, and maximum width.
| Product Page | Total Thickness (inches) |
Adhesive Thickness (inches) |
Adhesive Type | Adhesive Strength (oz/inch) |
Operating Temp Min/Max °F |
Max Width (inches) |
|---|---|---|---|---|---|---|
| 6603-07 | 0.007 | 0.002 | Acrylic | 35 | -40/350 | 42 |
| 6605-07-D | 0.007 | 0.002 | Silicone | 35 | -100/500 | 42 |
| 6605-07HT | 0.007 | 0.002 | Silicone | 30 | -100/500 | 42 |
| 6615-07 | 0.007 | 0.003 | Silicone | 45 | -100/500 | 38 |
| 6605-10 | 0.009 | 0.004 | Silicone | 30 | -100/500 | 42 |
| 6615-10-D | 0.011 | 0.004 | Silicone | 40/25 | -100/500 | 38 |
The data herein are averages based on the authoritative testing of several lot numbers. This information is intended for comparison purposes only.
FAQ
Common questions about
ptfe glass cloth
adhesive and insulation
tapes.
What is PTFE glass cloth tape?
PTFE glass cloth tape is a reinforced fiberglass cloth tape with an adhesive backing. It is used where flexibility, insulation, cut-through resistance, and high temperature performance are required.
What are glass cloth tapes used for?
Glass cloth tapes are used for electrical insulation, high temperature masking, wrapping, reinforcing, aerospace processing, and industrial protection applications.
Are glass cloth tapes available with adhesive on both sides?
Yes. Select Taconic glass cloth tape constructions are available with adhesive coated on one or two sides.
Related Tape Pages
Explore more
industrial tape options.
Ready to Get Started?
Need help selecting
the right tape construction?
Taconic can help match backing material, adhesive type, tape thickness, release performance, and temperature range to your process requirements.
