PTFE Coated & Glass Cloth Tapes

Wire Harness
Insulation & Protection



Taconic manufactures PTFE coated fiberglass tapes and glass cloth tapes engineered for cable insulation, wire harness protection, and sensitive electronics shielding applications.

Designed for harsh, high-vibration environments, Taconic tape constructions offer heat resistance, abrasion resistance, insulation performance, flame retardancy, chemical resistance, and low-friction surfaces for long-term durability and protection.

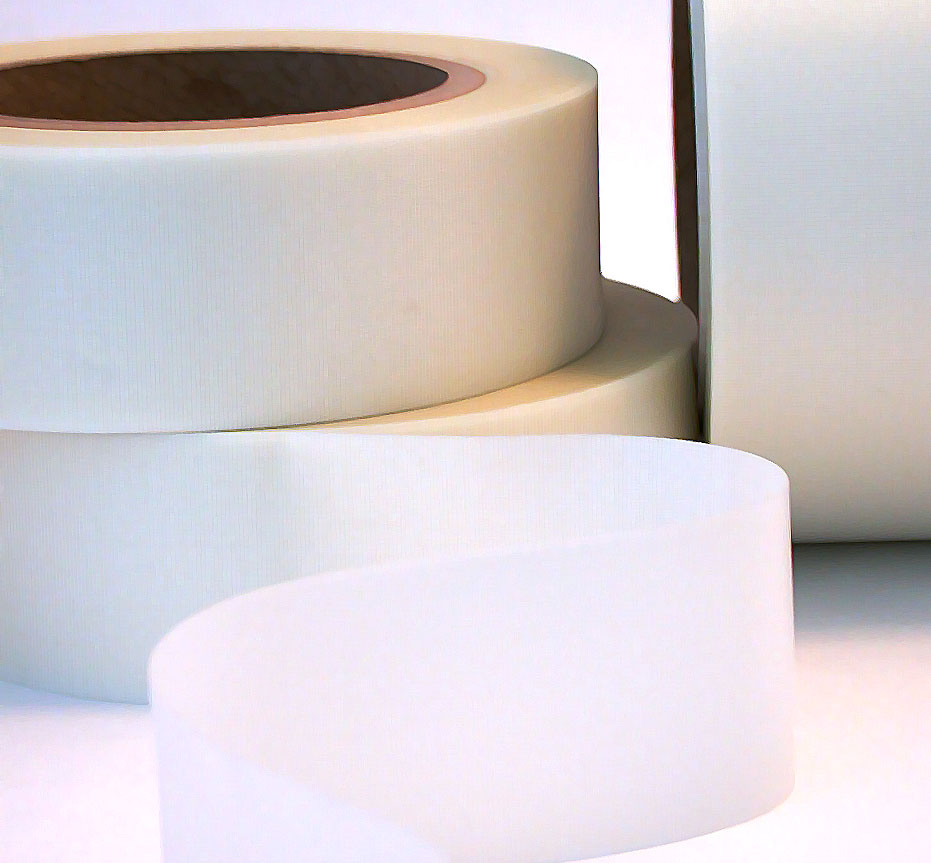

Wire harness insulation and PTFE coated protection tapes for high vibration environments
Key Benefits: Low Friction Heat Resistant Flame Retardant Chemical Resistant Low Outgassing Options Abrasion Resistant


Application Overview

Protection materials for
extreme operating environments.

Wire harnesses and cable assemblies operating in demanding environments require insulation and protection materials capable of resisting heat, wear, vibration, chemicals, and long-term environmental exposure.

Taconic PTFE coated fiberglass tapes and glass cloth tapes provide durable insulation layers and protective barriers designed to help sensitive electronics and wire systems perform reliably over time.

The Challenge

Protect wiring.
Maintain reliability.

Wire harness insulation materials must withstand environmental exposure while protecting sensitive electronics and cable systems.

● High vibration operating conditions
● Heat and flame exposure
● Abrasion and wear over time
● Chemical and weather exposure


Performance Benefits

Engineered for insulation.
Built for durability.

Heat Resistance

PTFE coated and glass cloth tapes withstand elevated temperatures in demanding environments.

Abrasion Resistance

Glass cloth tapes provide strong tear resistance and abrasion protection for cable systems.

Low Outgassing

Select tape constructions are developed with low outgassing properties for sensitive environments.

Chemical Resistance

PTFE coated fiberglass tapes resist chemicals, weather exposure, and shrinkage over time.

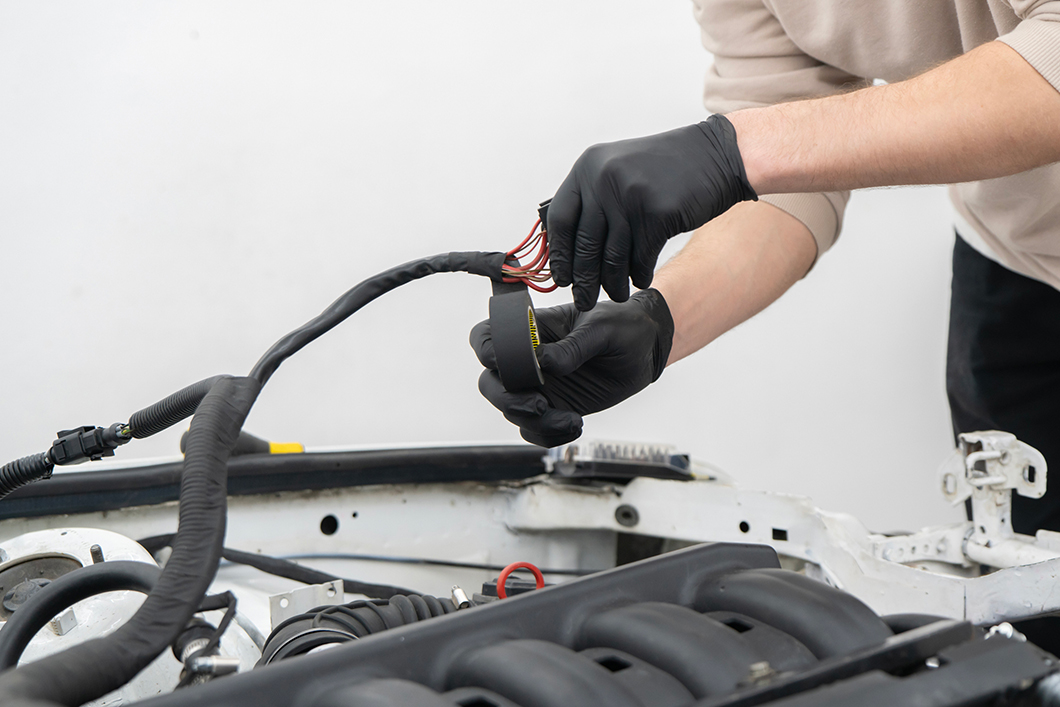

Protected wire harness systems using PTFE coated insulation tapes



Where These Materials Work

Protection solutions for
high vibration cable environments.

Taconic PTFE coated and glass cloth tapes are used where insulation performance, abrasion resistance, low friction, and long-term durability are essential to wire harness and cable system performance.

Cable Insulation Layers
Wire Harness Protection
Sensitive Electronics Shielding
High Temperature Wiring
Extreme Environments
Low Outgassing Applications


Product Information

Compare insulation tapes
for wire harness applications.

PTFE coated fiberglass and glass cloth tape constructions for insulation, abrasion resistance, and wire harness protection.

Description Part Number Overall Thickness
(in)		 Adhesive Thickness
(in)		 Adhesive Type Adhesive Strength Operating Temp
Min/Max °F		 Max Width
(in)
Glass Cloth Tape 6603-07 0.007 0.002 Acrylic 35 -40 / 350 42
6605-07D 0.007 0.002 Silicone 35 -100 / 500 42
6605-07HT 0.007 0.002 Silicone 30 -100 / 500 42
6615-07 0.007 0.003 Silicone 50 -100 / 500 38
6605-10 0.009 0.004 Silicone 30 -100 / 500 42
6615-10-D 0.011 0.004 Silicone 40 -100 / 500 38
Low Outgassing Tape 6603-07-E595 0.007 0.002 Acrylic 35 -40 / 350 42

The data herein are averages based on authoritative testing of several lot numbers. This information is intended for comparison purposes only. Low outgassing tapes ASTM E-595 tested.



Need Wire Harness Protection?

Reliable insulation starts with
the right tape construction.

Contact Taconic to discuss wire harness insulation, cable protection, temperature resistance, low outgassing requirements, and tape selection for your application.

Contact Taconic
