Tac-Black™ Anti-Static Belting
Tac-Black™ Anti-Static
PTFE Coated
Fiberglass
Belting

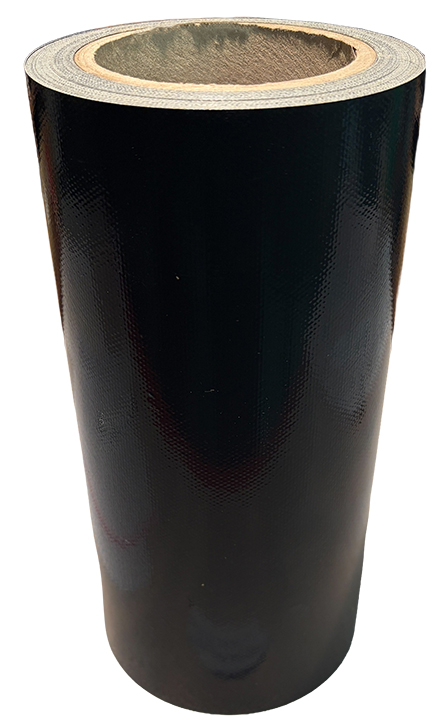

Taconic Tac-Black™ anti-static PTFE coated fiberglass belting is designed for applications requiring static dissipation, release performance, heat resistance, and process stability.
These belt constructions help reduce static build-up while maintaining the benefits of PTFE coated fiberglass belting for high-temperature industrial conveying.
Tac-Black™ anti-static belts are used in static-sensitive process environments, conveyor systems, release surfaces, and production applications requiring electrical dissipation.
Performance Advantages
Why choose this
belt construction?
Static Control
Designed to help dissipate static build-up in production environments.
Conductive Performance
Anti-static PTFE constructions support electrical dissipation requirements.
PTFE Release
Maintains useful non-stick release behavior for conveying and process contact.
Industrial Durability
Coated fiberglass construction supports heat resistance and dimensional stability.

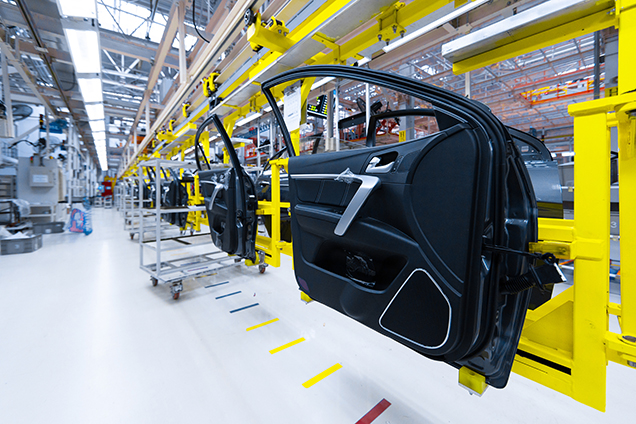

Common Applications
Built for focused
industrial use cases.
Tac-Black™ anti-static belts are used where static dissipation, release performance, heat resistance, and conveying reliability are important.
Product Values
Tac-Black™ anti-static PTFE coated belting
products and specifications.
Compare Tac-Black™ anti-static PTFE coated fiberglass belt products by thickness, coated weight, tensile strength, and tear strength.
Product numbers link to individual product pages with additional information and data sheets.
| Product Page | Nominal Thickness (Inches) | Coated Weight (lbs/sq yd) | Tensile Strength Warp/Fill (lbs/inch) | Tear Strength Warp/Fill (lbs) |
|---|---|---|---|---|
| 8103AS | 0.0095 | 0.90 | 280 / 210 | 8.5 / 8.0 |
| 8143AS | 0.0140 | 1.36 | 400 / 335 | 11.5 / 7.5 |
The data herein are averages based on the authoritative testing of several lot numbers. This information is intended for comparison purposes only.
Belting FAQ
Common questions about
Tac-Black™ anti-static belting.
What is Tac-Black™ anti-static belting used for?
It is used in static-sensitive conveying and production applications requiring PTFE release, heat resistance, and static dissipation.
How is Tac-Black™ anti-static different from Tac-Black™ pigmented belting?
Tac-Black™ anti-static belting is designed for static control, while Tac-Black™ pigmented belting is primarily associated with black PTFE heat retention and thermal processing.
Does anti-static belting still provide PTFE release?
Yes. It maintains useful PTFE release properties while supporting static dissipation.
Need help selecting a belt?
Taconic can help match belt material, surface texture, splice type, edge reinforcement, and operating conditions to your application.
