Cable Splicing Tapes
Cable Splicing
Insulation Tapes
Taconic offers high-performance PTFE-coated fiberglass tapes and fluoropolymer film tapes designed to meet the demanding requirements of cable splicing in downhole oil well pump applications.
Oil and gas environments expose materials to elevated temperatures, aggressive chemicals, and continuous mechanical stress. Taconic tapes provide reliable insulation and protection, helping maintain cable integrity and long-term performance in harsh operating conditions.
Performance Advantages
Built for harsh
oil and gas environments.
Taconic cable splicing tapes are manufactured with high-quality fiberglass substrates, fluoropolymer films, and premium PTFE coatings to support cable wrapping applications exposed to heat, chemicals, and mechanical stress.
Reliable insulation
High dielectric performance helps protect spliced cable systems in demanding downhole pump applications.
Thermal stability
Selected constructions support elevated temperature exposure, with options rated up to 500°F depending on adhesive system.
Chemical resistance
PTFE and fluoropolymer surfaces help protect cable splices from aggressive chemical environments.
Smooth wrapping surface
Smooth fluoropolymer surfaces allow for easy handling and consistent wrapping during splice installation.
Product Lineup
Cable wrapping tapes
for demanding splices.
Taconic offers PTFE-coated fiberglass tapes and fluoropolymer film tapes with acrylic and silicone adhesive systems for cable wrapping applications.
Some examples include...
Product Guide
Cable splicing tape
product specifications.
Compare Taconic cable wrapping tapes by overall thickness, adhesive thickness, adhesive type, adhesive strength, operating temperature range, and application.
| Product Page | Overall Thickness (in) |
Adhesive Thickness (in) |
Adhesive Type | Adhesive Strength (oz) |
Operating Temp Min/Max °F |
|---|---|---|---|---|---|
| 6113-05 E2 | 0.007 | 0.002 | Acrylic | 55 | -40/350 |
| 6145-02D NL | 0.004 | 0.002 | Silicone | 30 | -100/500 |
| 6145-02D | 0.004 | 0.002 | Silicone | 30 | -100/400 |
| 6443-02 | 0.004 | 0.002 | Acrylic | 49 | -40/350 |
| 6445-02 | 0.004 | 0.002 | Silicone | 25 | -100/500 |
| 6603-07 NL | 0.007 | 0.002 | Acrylic | 35 | -40/350 |
| 6605-07-D NL | 0.007 | 0.002 | Silicone | 35 | -100/500 |
| 6615-07 | 0.007 | 0.003 | Silicone | 45 | -100/500 |
The data herein are averages based on the authoritative testing of several lot numbers. This information is intended for comparison purposes only.

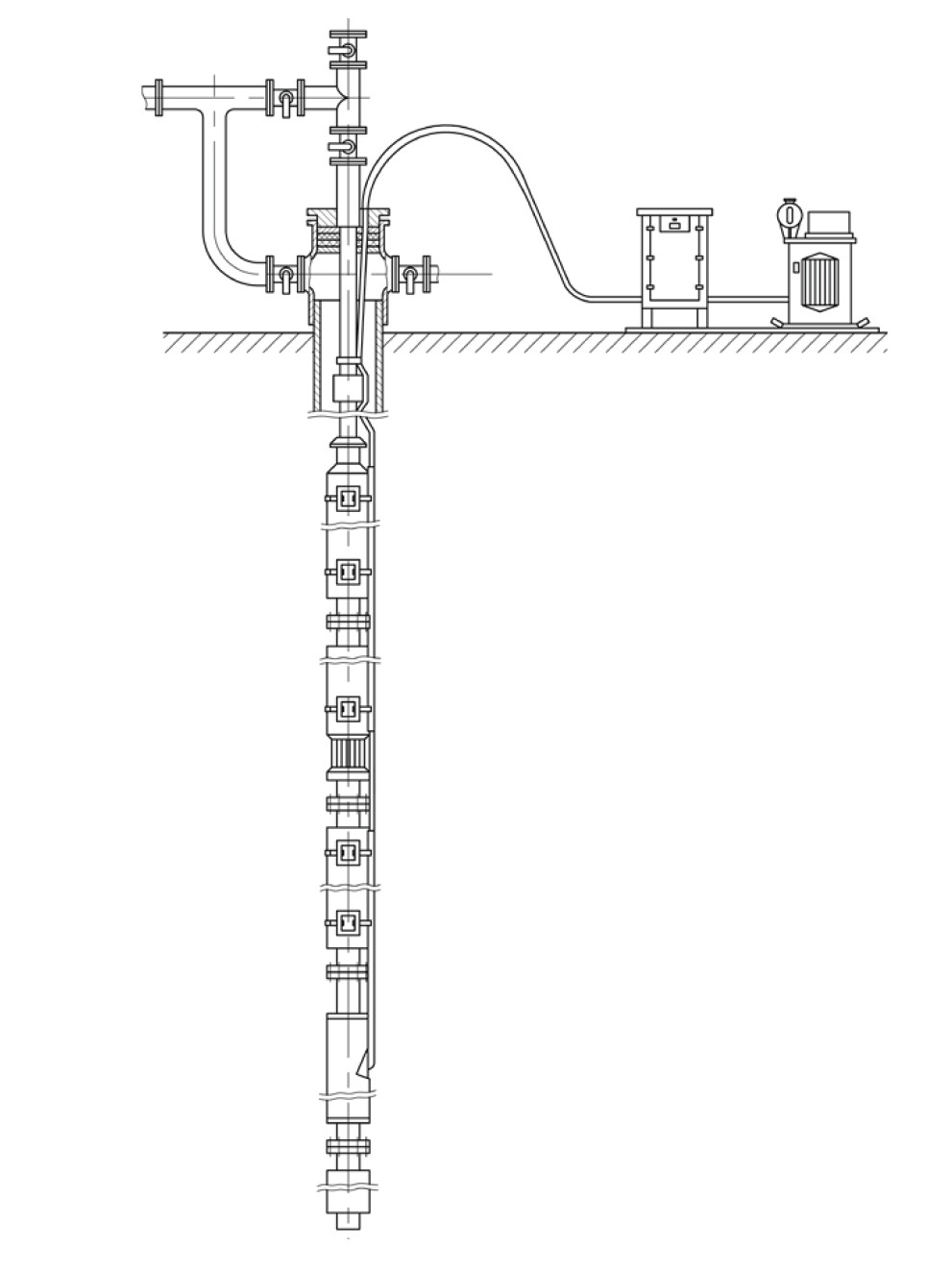

Downhole Cable Splicing
Protect the splice.
Support long-term cable reliability.
Contact Taconic to discuss your cable splicing application, temperature exposure, adhesive requirements, cable wrapping process, and product needs.
Contact Taconic
