Pigmented PTFE with LSR

Liquid Silicone Rubber
Coated Fiberglass
Fabric

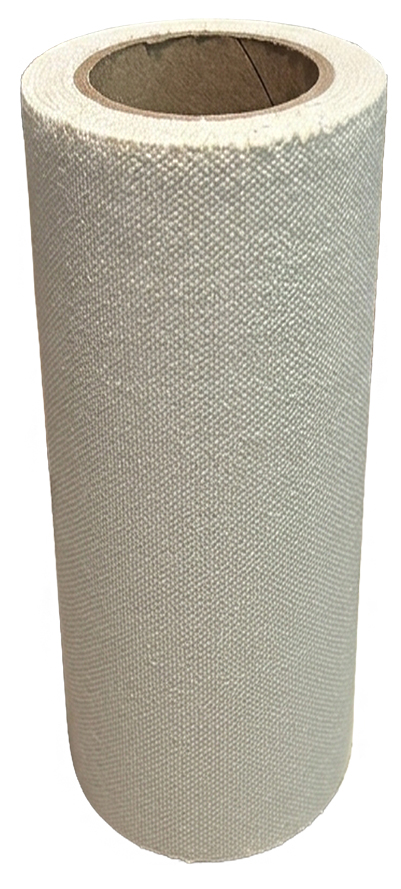

Pigmented PTFE coated fiberglass fabric with liquid silicone rubber surface

Taconic pigmented PTFE with liquid silicone rubber coated fiberglass fabric is a specialty construction designed for applications requiring a controlled combination of release, grip, heat resistance, and process stability.

This material combines PTFE coated fiberglass fabric performance with liquid silicone rubber surface characteristics, helping support applications where a standard PTFE coated fabric or traditional silicone coated fabric may not provide the right balance of properties.

Pigmented PTFE with LSR is used for specialty release surfaces, grip surfaces, food contact processing, fabricated components, and industrial applications requiring a unique blend of PTFE and silicone rubber performance.

Available with liquid silicone rubber on both sides or with PTFE on one side and liquid silicone rubber on the other.




Performance Advantages

Why choose this
fabric construction?

Specialty Surface

Combines pigmented PTFE and liquid silicone rubber surface characteristics for specialized industrial processing needs.

LSR Performance

Liquid silicone rubber helps support applications requiring surface grip, controlled release, and process-specific handling characteristics.

Food Contact

Select constructions may support food contact processing where FDA compliance and specialized surface behavior are required.

Release and Grip

Provides a specialty balance of release and grip for applications where conventional PTFE or silicone coated fabrics are not ideal.



Common Applications

Built for focused
industrial use cases.

Liquid silicone rubber coated fiberglass fabric is used where specialty release, grip, food contact suitability, and fabricated component performance are important.



Product Values

Pigmented PTFE with liquid silicone rubber fabric
products and specifications.

Compare available pigmented PTFE with liquid silicone rubber coated fiberglass fabric by thickness, coated weight, tensile strength, tear strength, dielectric performance, FDA compliance, and maximum width.

Product numbers link to individual product pages with additional information and data sheets.

Product Page Nominal Thickness (Inches) Total Coated Weight (lbs/sq yd) Tensile Strength Warp/Fill (lbs/inch) Tear Strength Warp/Fill (lbs) Dielectric Breakdown (volts/mil) FDA Compliant Max Width (Inches)
A1075 0.0095 0.79 155/145 3.5/3.0 — Y 38

The data herein are averages based on the authoritative testing of several lot numbers. This information is intended for comparison purposes only.



Fabric FAQ

Common questions about
pigmented PTFE with LSR.

What is pigmented PTFE with LSR fabric?

It is a specialty coated fiberglass fabric that combines pigmented PTFE coated fabric performance with liquid silicone rubber surface characteristics.

When should I consider this fabric?

Consider this fabric when the application requires a specialized combination of release, grip, chemical resistance, food contact suitability, and dimensional stability.

Is this the same as standard PTFE coated fabric?

No. Pigmented PTFE with LSR is a specialty coated fabric with different surface characteristics than standard PTFE coated fiberglass fabric.

Need help selecting a fabric?

Taconic can help match coating type, release performance, grip requirements, FDA compliance, tensile strength, thickness, and surface behavior to your application.
