Standard PTFE Belting

Standard Grade
PTFE Coated Fiberglass
Belting

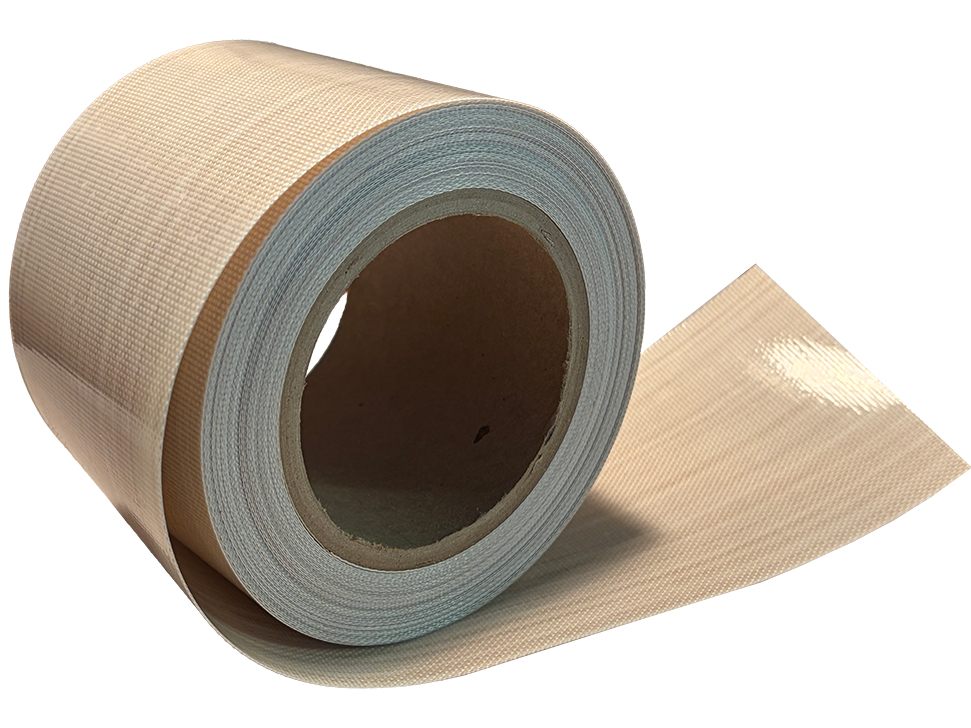

Standard PTFE coated fiberglass conveyor belting

Taconic standard PTFE coated fiberglass belting is the most widely used belt grade for general-purpose high-temperature conveying and non-stick process applications.

Standard belts provide a strong balance of release performance, dimensional stability, heat resistance, chemical resistance, and belt fabrication flexibility.

Available in standard smooth and standard textured constructions, this belting category supports food processing, packaging, heat sealing, laminating, and industrial conveying applications.




Performance Advantages

Why choose this
belt construction?

General Purpose

Balanced PTFE coating and fiberglass support make standard belting useful across many applications.

Non-Stick Surface

Provides reliable release for conveying, sealing, transfer, and process contact.

Dimensional Stability

Fiberglass reinforcement helps belts maintain shape and tracking through heat and tension.

Fabrication Friendly

Standard belting can be fabricated with common splice, edge, and tracking options.



Available Constructions

Choose the right
belt surface.

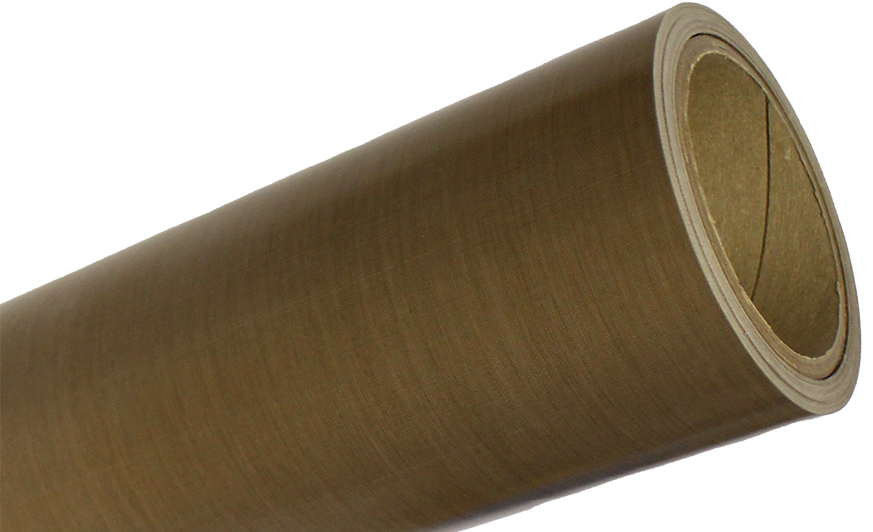

Standard smooth PTFE coated fiberglass belting surface

Standard Smooth

Standard smooth PTFE belts are used for general-purpose release, conveying, heat sealing, and high-temperature processing applications.

Smooth General Purpose Release

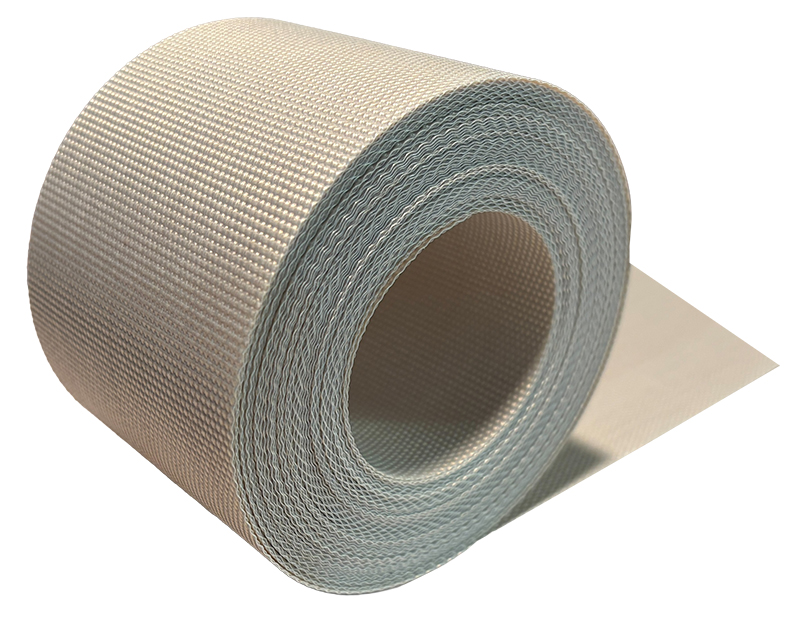

Standard textured PTFE coated fiberglass belting surface

Standard Textured

Standard textured belts provide a PTFE surface with added profile for applications requiring traction, process grip, or textured contact.

Textured Traction Durable


Common Applications

Built for focused
industrial use cases.

Standard PTFE coated fiberglass belts are used across production environments requiring release, heat resistance, and reliable conveying.

Heat Sealing application using Taconic conveyor belting


Standard Belting Applications

Heat Sealing

Non-stick conveyor belt surfaces for heat sealing, packaging equipment, and heated contact points.

Food Processing application using Taconic conveyor belting


Standard Belting Applications

Food Processing

High-temperature process belts for food production environments requiring release and consistent conveying.

Composite Manufacturing application using Taconic conveyor belting


Standard Belting Applications

Composite Manufacturing

Coated belt materials for release, lamination, composite processing, and high-temperature production.

uPVC welding application using Taconic conveyor belting


Standard Belting Applications

uPVC Welding

PTFE coated conveyor belting for uPVC welding processes requiring non-stick release, heat resistance, dimensional stability, and long production life.



Product Values

Standard Grade
PTFE coated fiberglass belting
products and specifications.

Compare standard smooth and standard textured PTFE coated fiberglass belt products by thickness, coated weight, tensile strength, and tear strength.

Product Page Nominal Thickness (Inches) Coated Weight (lbs/sq yd) Tensile Strength Warp/Fill (lbs/inch) Tear Strength Warp/Fill (lbs)
Standard Smooth
8038 0.0028 0.26 95 / 70 3.25 / 2.5
8108 0.0090 0.92 285 / 185 12.0 / 7.0
8148 0.0135 1.35 400 / 300 15.0 / 15.0
Standard Textured
8208 0.02 1.52 375 / 355 17.0 / 15.0
8278 0.0255 1.83 400 / 500 25.0 / 20.0

The data herein are averages based on the authoritative testing of several lot numbers. This information is intended for comparison purposes only.



Belting FAQ

Common questions about
standard PTFE belting.

What is standard PTFE belting used for?

Standard PTFE belting is used for general-purpose conveying, heat sealing, packaging, food processing, laminating, and high-temperature industrial processes.

What is standard textured belting used for?

Standard textured belting is used when a belt needs added surface profile, traction, or process contact while maintaining PTFE release properties.

Is standard PTFE belting a good all-purpose option?

Yes. Standard PTFE coated fiberglass belting is often selected for balanced release, durability, and cost-effective performance.

Need help selecting a belt?

Taconic can help match belt material, surface texture, splice type, edge reinforcement, and operating conditions to your application.
