Thermal Spray Masking Tapes
Thermal Spray Masking Tapes

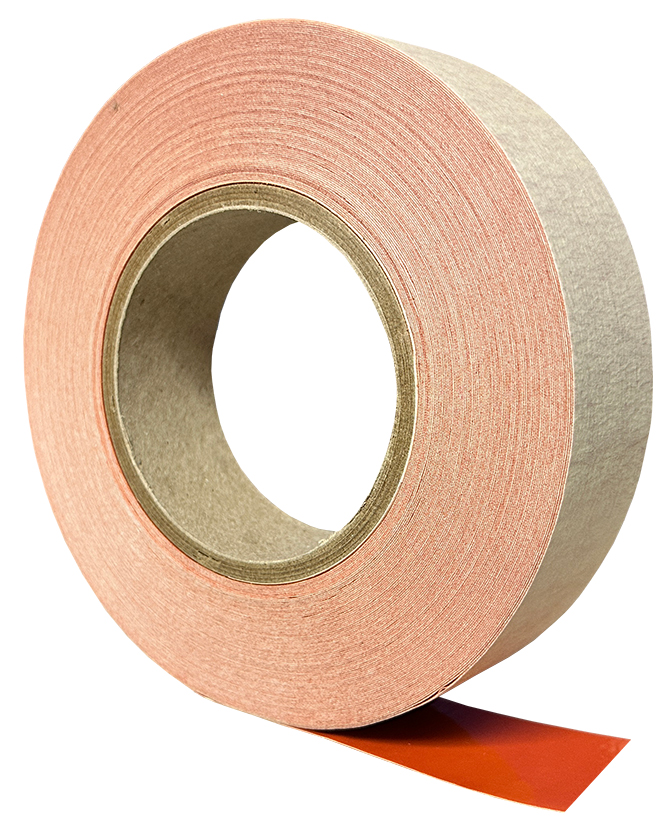

Taconic thermal spray masking tapes are engineered for demanding metal and ceramic coating processes requiring abrasion resistance, temperature resistance, clean masking, and reliable surface protection.
These industrial masking tapes are used in plasma spray, flame spray, HVOF spray, grit blasting, and other thermal spray applications where selected areas must be protected from coating buildup, overspray, abrasion, and heat exposure.
Available in multiple PTFE glass cloth, silicone rubber, and specialty constructions, Taconic thermal spray masking tapes help support repeatable masking performance in high-value industrial finishing and coating operations.
Product Lineup
Right product.
Right process. Every time.
Taconic offers a broad range of masking products for primary masking, secondary masking, abrasion resistance, flame spray, plasma spray, HVOF masking, and complex geometry protection.
Product Selection Guide
Match your process
to the right maskant.
General masking product guide by thermal spray process.
| Process | 6605-07 | 6615-07 | 6615-12 | 6625-07 | 6625-09 | 6625-11 | 6525-08 | 6525-08 RD | 6525-16 | 6725-15 | 7102W | 7322W | 7422W | Compounds |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Abrasive Blasting | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Shot Peening | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Electric Arc Spray | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Combustion Flame Spray | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Air Plasma Spray | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| Gaseous Fuel HVOF | ● | ● | ● | ● | ● | ● | ||||||||
| Liquid Fuel HVOF | ● | ● | ● | |||||||||||
| HVAF | ● | ● | ● | |||||||||||
| Suspension Plasma Spray | ● | |||||||||||||
| High Energy Plasma Spray | ● |
This product guide is intended for comparison and selection support. Contact Taconic for product recommendations based on your thermal spray process, masking geometry, temperature exposure, abrasion level, and removal requirements.
Performance Advantages
Why choose
thermal spray masking tapes?
Abrasion resistance
Designed to support demanding production environments where consistency, durability, and process performance matter.
High temperature masking
Designed to support demanding production environments where consistency, durability, and process performance matter.
Plasma spray and HVOF masking
Designed to support demanding production environments where consistency, durability, and process performance matter.
Multiple specialty constructions
Designed to support demanding production environments where consistency, durability, and process performance matter.
Common Applications
Built for focused
industrial tape applications.
This page is designed as a focused resource for users searching for thermal spray masking tapes, helping connect the right adhesive tape construction to the application, process conditions, and performance requirements.
Product Values
Available products
and specifications.
Compare available thermal spray masking tapes by total thickness, adhesive thickness, adhesive type, adhesive strength, operating temperature range, and maximum width.
| Product Page | Total Thickness (inches) |
Adhesive Thickness (inches) |
Adhesive Type | Adhesive Strength (oz/inch) |
Operating Temp Min/Max °F |
Max Width (inches) |
|---|---|---|---|---|---|---|
| 6605-07-HP | 0.007 | 0.002 | Silicone | 40 | -100/500 | 42 |
| 6615-07 | 0.007 | 0.003 | Silicone | 45 | -100/500 | 38 |
| 6615-12 | 0.012 | 0.007 | Silicone | 45 | -100/500 | 38 |
| 6625-07 | 0.007 | 0.003 | Silicone | 70 | -100/500 | 34 |
| 6625-09 | 0.009 | 0.004 | Silicone | 50 | -100/500 | 34 |
| 6625-11 | 0.011 | 0.004 | Silicone | 50 | -100/500 | 34 |
| 6525-08 | 0.011 | 0.003 | Silicone | 50 | -100/500 | 38 |
| 6525-08-RD | 0.011 | 0.003 | Silicone | 40 | -100/625 | 41 |
| 6525-16 | 0.021 | 0.003 | Silicone | 48 | -100/500 | 38 |
| 6725-15 | 0.015 | 0.006 | Silicone | 50 | -100/500 | 38 |
The data herein are averages based on the authoritative testing of several lot numbers. This information is intended for comparison purposes only.
FAQ
Common questions about
thermal spray masking tapes.
What are thermal spray masking tapes used for?
Thermal spray masking tapes are used to protect selected surfaces during plasma spray, HVOF spray, flame spray, grit blasting, and metal or ceramic coating operations.
What makes a tape suitable for thermal spray masking?
Thermal spray masking tapes must provide abrasion resistance, temperature resistance, adhesion, conformability, and protection from coating buildup or overspray.
Are Taconic thermal spray masking tapes used for HVOF?
Yes. Taconic thermal spray masking tapes are used in HVOF, plasma spray, flame spray, grit blasting, and related coating processes.
Related Tape Pages
Explore more
industrial tape options.
Ready to Get Started?
Need help selecting
the right tape construction?
Taconic can help match backing material, adhesive type, tape thickness, release performance, and temperature range to your process requirements.
Contact Taconic
