Zone Tapes

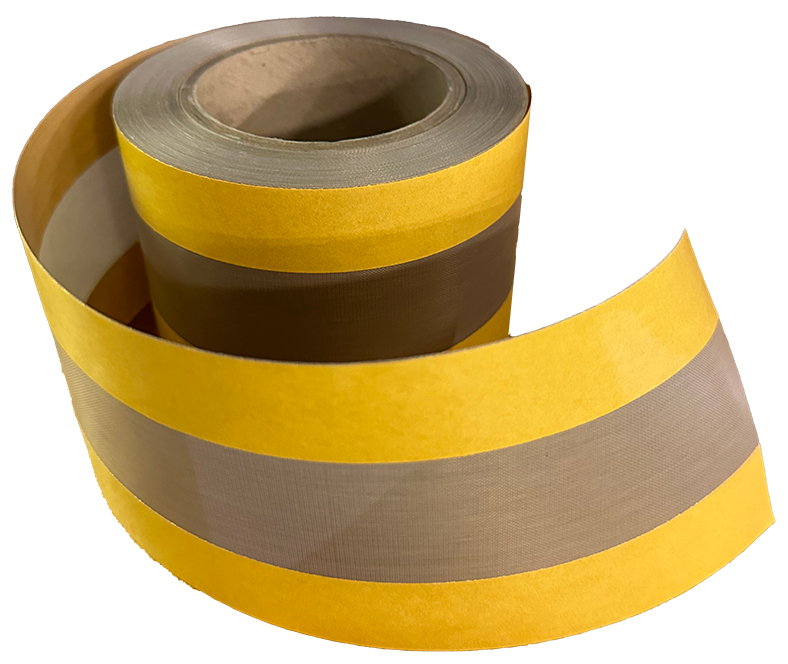

Taconic PTFE coated fabric zone tapes are custom made for applications where pressure sensitive adhesive is required only on specific surfaces, leaving clear non-adhesive zones where adhesive contact is not safe or desirable.
Zone tapes are commonly used in heat sealing, packaging, and bag making applications where removing adhesive from heating element contact areas can improve thermal flow, increase throughput, and extend product life.
Available in FDA-compliant Taconic PTFE fabrics from 3 to 10 mils, zone tapes can be supplied up to 18.5 inches wide with customer-specified adhesive widths and locations in 18 or 36 yard rolls.
Performance Advantages
Why choose
custom PTFE zone tapes?
Custom adhesive placement
Pressure sensitive adhesive can be applied only where needed, leaving clear non-adhesive zones for heating elements and process contact areas.
Improved heat transfer
Removing adhesive from heating element contact areas supports increased thermal flow and can help improve production throughput.
Long lasting nonstick surface
PTFE coated fabric provides superior release properties and a long-lasting nonstick surface for heat sealing and packaging processes.
Clean removal
Designed for easy, residue-free removal to reduce downtime and support cost-effective production.
Common Applications
Built for focused
heat sealing applications.
Zone tapes are used where selective adhesive placement, release performance, thermal flow, and clean sealing performance are critical to the process.
Substrate Options
PTFE coated fabric
substrate options.
Taconic zone tapes are available with multiple PTFE coated fabric substrates, including standard, premium, and textured options.
| Substrate | Fabric Part Number | PTFE Coated Fabric Grade |
|---|---|---|
| -03 | 7038 | Standard |
| -039 | 7039 | Premium |
| -05 | 7058 | Standard |
| -059 | 7059 | Premium |
| -06 | 7068 | Standard |
| -069 | 7069 | Premium |
| -08TEX | 10-69-128 | Textured |
| -10 | 7108 | Standard |
Example: 6800-039 indicates 6800 adhesive with a 7039 premium grade PTFE coated fabric substrate.
Adhesive Options
Choose the adhesive
that fits your process.
Zone tapes are available with five adhesive options designed for different tack, peel, temperature, shear, moisture resistance, and solvent resistance needs.
| Adhesive | Description | Liner | Tack ASTM D2979 (oz/in²) |
Adhesive Strength (oz/in) |
SAFT 500 g/in² (°F / °C) |
|---|---|---|---|---|---|
| 6800 | High Tack, High Temp., Moisture Resistant Acrylic | White 3M Logo | 1080 | 61 | 424 / 218 |
| 6093Z | High Peel, High Tack, Moisture Resistant Acrylic | White Kraft | 990 | 138 | 240 / 116 |
| 6700 | High Temp. Shear Strength, High Peel Acrylic | Red Polyester | 1370 | 64 | 530 / 277 |
| 6600 | High Temp. Modified Acrylic | Yellow/Brown Havana | 380 | 17 | 331 / 166 |
| 6500 | High Peel, High Tack Solvent Resistant Synthetic Rubber | White | 540 | 60 | 201 / 94 |
The data herein are averages based on a 3 mil substrate and authoritative testing of several lot numbers. This information is intended for comparison purposes only.
Related Tape Pages
Explore more
industrial tape options.
Ready to Get Started?
Need custom adhesive zones
for your sealing process?
Taconic can help match PTFE fabric substrate, adhesive type, tape width, adhesive placement, roll length, and process requirements to your application.
