Economy Grade PTFE Glass Fabric

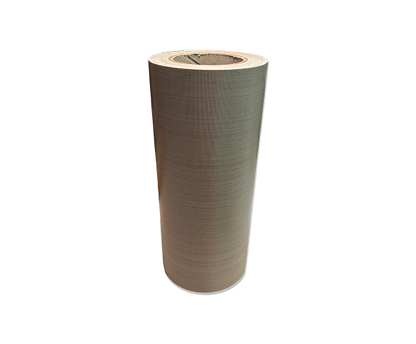

Taconic 10-69-128 is a textured 8 mil PTFE coated fiberglass fabric. This material exhibits release properties, heat resistance, and chemical resistance. The unique surface texture provides a visibly embossed patter in poly films during the heat sealing process.
Max width is 44” wide.
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 44 |
| Nominal Thickness (inches): | 0.0085 |
| Coated Weight (lbs/sq yd): | 0.7 |
| Dielectric Breakdown (volts/mil): | 280 |
| Tensile Warp: | 230 |
| Tensile Fill: | 185 |
| Tear Warp: | 18 |
| Tear Fill: | 12 |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 500 |
| Data Sheet: | Download Data Sheet (PDF) |
