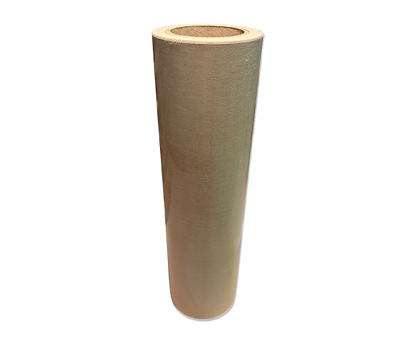

Crease & Tear Resistant PTFE-Glass Fabric
Taconic 7054 is a 5 mil crease and tear resistant PTFE coated fiberglass fabric. This material exhibits heat resistance, chemical resistance, and release properties.
This fabric is commonly used for belting applications or for fabric scrolls. The fabric can also be used for plastic packaging, tray liners, and some aerospace applications. The tear resistant properties allow the fabric to resist premature snapping, tearing and failure.
Maximum width is 56” wide.
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 56 |
| Nominal Thickness (inches): | 0.0047 |
| Coated Weight (lbs/sq yd): | 0.45 |
| Dielectric Breakdown (volts/mil): | 700 |
| Tensile Warp: | 160 |
| Tensile Fill: | 160 |
| Tear Warp: | 6.5 |
| Tear Fill: | 5.5 |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 500 |
| Data Sheet: | Download Data Sheet (PDF) |
