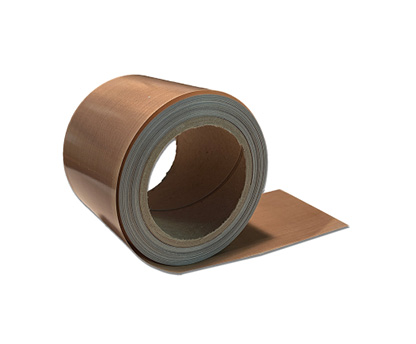

Standard Grade PTFE Glass Fabric
Taconic 7058 is a standard 5 mil PTFE coated fiberglass fabric. This material exhibits release properties, heat resistance, chemical resistance, and allows for good heat transfer.
Common applications include heat sealing/poly packaging, tray lining, electrical insulation/winding, composite release liners, gaskets and seals, uPVC window welding, and a variety of aerospace applications.
Maximum width is 62” wide.
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 62 |
| Nominal Thickness (inches): | 0.0045 |
| Coated Weight (lbs/sq yd): | 0.44 |
| Dielectric Breakdown (volts/mil): | 975 |
| Tensile Warp: | 175 |
| Tensile Fill: | 155 |
| Tear Warp: | 6.25 |
| Tear Fill: | 6.25 |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 500 |
| Data Sheet: | Download Data Sheet (PDF) |
