Products » 7109
Premium Grade PTFE Glass Fabric

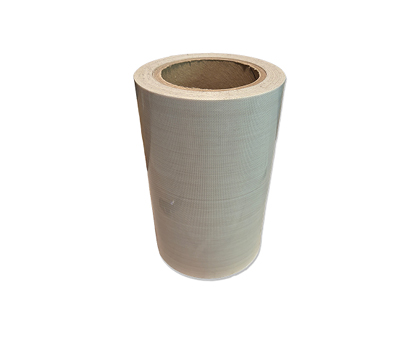

Taconic 7109 is a 10 mil PTFE coated fiberglass fabric complete with a premium coated weight of PTFE. This material exhibits release properties, heat resistance, and chemical resistance.
Common applications include heat sealing/poly packaging, tray lining, composite release liners, food processing (platen covering), gaskets and seals, uPVC window welding, and a variety of aerospace applications.
Maximum width is 62” wide.
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 62 |
| Nominal Thickness (inches): | 0.01 |
| Coated Weight (lbs/sq yd): | 1 |
| Dielectric Breakdown (volts/mil): | 650 |
| Tensile Warp: | 300 |
| Tensile Fill: | 175 |
| Tear Warp: | 10 |
| Tear Fill: | 8 |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 500 |
| Data Sheet: | Download Data Sheet (PDF) |
