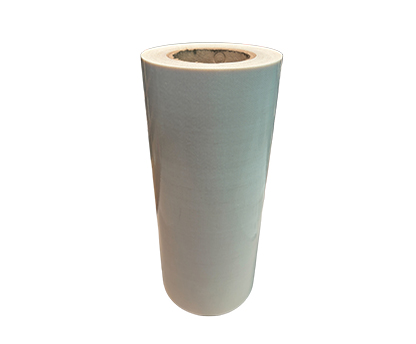

Standard Grade PTFE Glass Fabric
Taconic 7208 is a standard 20 mil PTFE coated fiberglass fabric. This material exhibits release properties, heat resistance, and chemical resistance. This material is designed to be a strong fabric with high tear strength and structurally sound to prevent distortion.
Common applications include tray lining, wear stripping, and gaskets and seals.
Maximum width is 140” wide.
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 140 |
| Nominal Thickness (inches): | 0.02 |
| Coated Weight (lbs/sq yd): | 1.52 |
| Dielectric Breakdown (volts/mil): | 240 |
| Tensile Warp: | 375 |
| Tensile Fill: | 355 |
| Tear Warp: | 17 |
| Tear Fill: | 15 |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 500 |
