Porous Bleeder & Filter Cloth

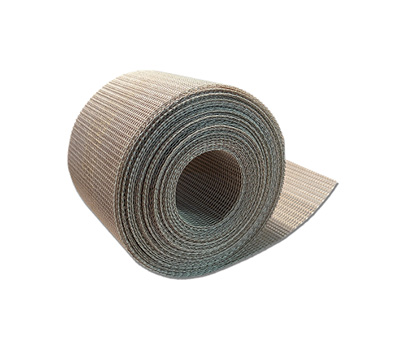

Taconic 7255 is a tan colored open mesh PTFE coated fiberglass fabric. This fabric comes with 5/64” (2mm) square mesh openings for controlled air flow and rapid drying.
The mesh fabric has excellent heat resistance and good release properties. Specifically designed for use in forced hot air curing ovens, 7255 is typically used un textile drying applications.
Maximum width is 168” wide.
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 168 |
| Nominal Thickness (inches): | 0.029 |
| Coated Weight (lbs/sq yd): | 0.82 |
| Dielectric Breakdown (volts/mil): | NA |
| Tensile Warp: | 165 |
| Tensile Fill: | 185 |
| Tear Warp: | NA |
| Tear Fill: | NA |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 500 |
| Data Sheet: | Download Data Sheet (PDF) |
