Products » 8103-AS
Heavy Weight Belting

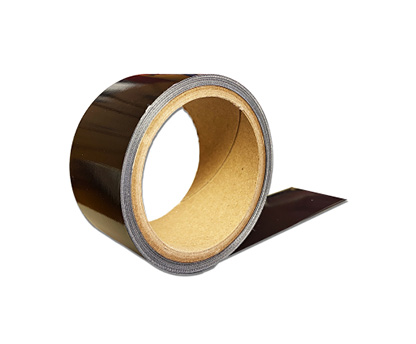

Taconic 8103AS is a 10 mil Black anti-static PTFE coated fiberglass fabric. This material exhibits release properties, heat resistance, and UV resistance, chemical resistance. The material resists a buildup of static electricity.
This fabric is commonly used in electronics and semiconductor applications or for situations where static electricity is a problem.
Maximum width is 94” wide.
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 94 |
| Nominal Thickness (inches): | 0.0095 |
| Coated Weight (lbs/sq yd): | 0.9 |
| Dielectric Breakdown (volts/mil): | NA |
| Tensile Warp: | 280 |
| Tensile Fill: | 210 |
| Tear Warp: | 8.5 |
| Tear Fill: | 8 |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 500 |
