Products » 8143-AS
Heavy Weight Belting

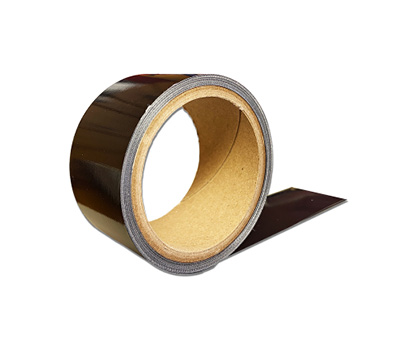

8143-AS is a smooth, anti-static, and mechanically strong PTFE-coated glass fabric. This material provides excellent release properties combined with high strength and dimensional stability. This product is typically used as a conveyor belt material.
Common applications include lamination processes including automotive, films and foam textiles.
Maximum width is 104”
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 104 |
| Nominal Thickness (inches): | 0.014 |
| Coated Weight (lbs/sq yd): | 1.36 |
| Dielectric Breakdown (volts/mil): | NA |
| Tensile Warp: | 400 |
| Tensile Fill: | 335 |
| Tear Warp: | 11.5 |
| Tear Fill: | 7.5 |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 500 |
