Products » 8143
Heavy Weight Belting

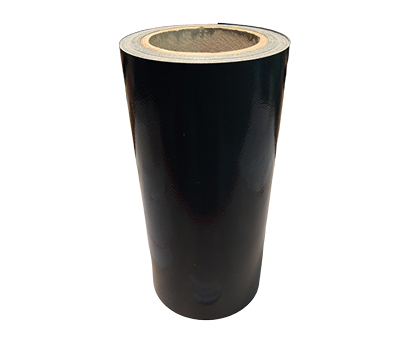

Taconic 8143 is a 14 mil Black pigmented PTFE coated fiberglass fabric. This material exhibits release properties, heat resistance, UV resistance, and chemical resistance. The black color also helps retain heat.
Common applications include plastic packaging, tray lining, gaskets, and seals.
Maximum width is 104” wide.
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 104 |
| Nominal Thickness (inches): | 0.0148 |
| Coated Weight (lbs/sq yd): | 1.36 |
| Dielectric Breakdown (volts/mil): | 140 |
| Tensile Warp: | 410 |
| Tensile Fill: | 320 |
| Tear Warp: | 10.4 |
| Tear Fill: | 7.8 |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 500 |
