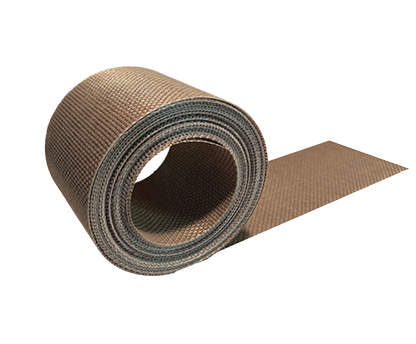

Open Mesh Belting - PTFE/Glass
Taconic 8195 is a 1mm open mesh PTFE coated fabric recommended for applications which require superior release and controlled porosity for rapid drying.
This fabric is specifically designed for use in high temperature forced hot air curing ovens for processing textiles and other materials.
Maximum width is 72”
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 72 |
| Nominal Thickness (inches): | 0.019 |
| Coated Weight (lbs/sq yd): | 0.95 |
| Dielectric Breakdown (volts/mil): | NA |
| Tensile Warp: | 200 |
| Tensile Fill: | 190 |
| Tear Warp: | NA |
| Tear Fill: | NA |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 500 |
