Products » 8208
Heavy Weight Belting

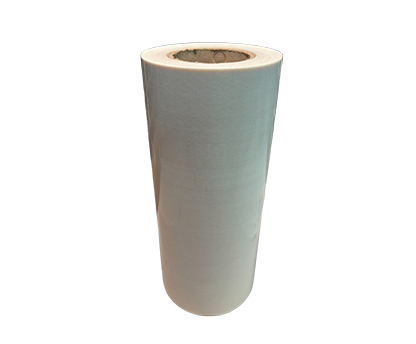

Taconic 8208 is a standard 20 mil PTFE coated fiberglass fabric. This material exhibits release properties, heat resistance, and chemical resistance. This material is designed to be a strong fabric with high tear strength and structurally sound to prevent distortion.
Common applications include conveyor belting, tray lining, wear stripping, and gaskets and seals.
Maximum width is 140” wide.
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 140 |
| Nominal Thickness (inches): | 0.02 |
| Coated Weight (lbs/sq yd): | 1.52 |
| Dielectric Breakdown (volts/mil): | 240 |
| Tensile Warp: | 375 |
| Tensile Fill: | 355 |
| Tear Warp: | 17 |
| Tear Fill: | 15 |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 500 |
