Open Mesh Belting - PTFE/Kevlar & Kevlar/Glass

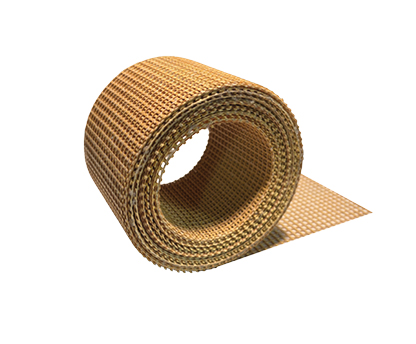

Taconic 7305K is a 30 mil, Natural/Gold colored open mesh PTFE coated Kevlar fabric. This fabric comes with ¼” square mesh openings to encourage good airflow. The mesh fabric has excellent heat resistance and good release properties. The Kevlar base fabric offers high tensile strength.
Common applications involve conveyor belting where breaking strength and air flow are required.
Maximum width is 118” wide.
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 118 |
| Nominal Thickness (inches): | 0.035 |
| Coated Weight (lbs/sq yd): | 0.62 |
| Dielectric Breakdown (volts/mil): | NA |
| Tensile Warp: | 450 |
| Tensile Fill: | 350 |
| Tear Warp: | NA |
| Tear Fill: | NA |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 356 |
