Heavy Weight Belting

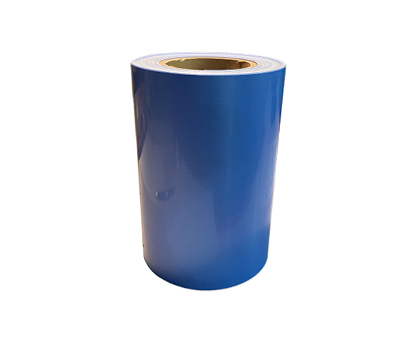

Taconic A1139 is a 10 mil Premium Blue PTFE coated fiberglass fabric. This fabric is produced with a proprietary coating that allows for excellent release properties and good heat transfer.
This fabric is commonly used in the production or pre-cooking of food products most notably flour tortillas and pizza. The enhanced coating allows for better yields per working life of the belts/fabric.
Maximum width is 51” wide.
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 51 |
| Nominal Thickness (inches): | 0.0105 |
| Coated Weight (lbs/sq yd): | 1 |
| Dielectric Breakdown (volts/mil): | 650 |
| Tensile Warp: | 270 |
| Tensile Fill: | 165 |
| Tear Warp: | 10.5 |
| Tear Fill: | 6 |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 500 |
| Data Sheet: | Download Data Sheet (PDF) |
